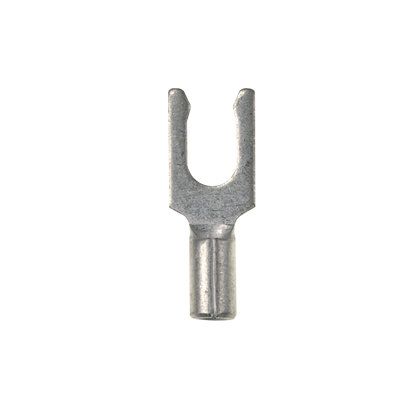

PAN P10-10LF-L Fork,Locking,Non-Ins
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$82.24/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P10-10LF-L
North Coast Part # 601336

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Fork Type: Locking Fork
  • Insulation Material: NA
  • Insulation Type: Non-Insulated
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG): #10
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Copper Conductor Size (AWG STR): #14
  • Minimum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG SOL): #14
  • Minimum Metric Conductor Size (mm²): 2.5
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (mm): 7.1
  • Stud Size: #10
  • Wire Strip Length (In.): 0.28
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 2
  • Maximum Voltage (V): 2000
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Metallic
  • Barrel Type: Beveled
  • Barrel Length (mm): 6.7
  • Barrel Length (In.): 0.27
  • Flammability Rating: UL 587-H
  • Maximum Operating Temperature (°C): 150
  • Maximum Operating Temperature (°F): 302
  • Seam Type: Brazed
  • Outer Diameter (mm): 5.6
  • Outer Diameter (In.): 0.22
  • Stud Hole Size (mm): 4.8
  • Stud Hole Size (In.): 1/5
  • Inside Diameter (In.): 0.13
  • Inside Diameter (mm): 3.3
  • Overall Length (In.): 0.79
  • Overall Length (mm): 20.1
  • Overall Width (In.): 0.34
  • Overall Width (mm): 8.6
  • Tongue Length (mm): 13.3
  • Tongue Length (In.): 0.53
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Sub Brand: Pan-Term
  • Tongue Width (mm): 8.6
  • Tongue Width (In.): 0.34
  • Packaging Type: Bottle
  • Product Type: Loose Piece Forks
  • For Use With: CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-1701 (P10), CT-2500 (CT-2570CH), CT-160, CT-260

Packaging Details

  • UPC: 07498380916
  • GTIN Package: 00074983809165
  • Standard Package Volume Ft3: 0.0072
  • Standard Package Weight Pounds: 0.2100
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.9
  • Std Package Width MM: 48.26
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983809160
  • Standard Carton Volume Ft3: 0.0072
  • Standard Carton Weight Pounds: 2.1000
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.3
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 3.6
  • Std Carton Width MM: 91.44
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983809165
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498380916
Item Long Description Locking Fork Terminal, Non-Insulated, 14 - 10 American Wire Gauge (AWG), No. 10 Stud Size. Locks in place for secure connection. Fork design provides for fast and easy installation, without the need to remove fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel of terminal internally beveled to provide quick and easy wire insertion. Maximum recommended operating temperature 302 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 2000 Volts per UL 486A/B. Standard Package.
GTiN 00074983809165
Finish Tin-Plated
Width 0.34 in
Type Loose Piece Forks
Barrel Type Beveled
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 302 F
Pkg Qty 50
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.79 in
Barrel Length 0.27 in
Color Coding Metallic
Enclosure Fork shape
Sub Brand Pan-Term
Size NA
Voltage 2,000 Volt
UNSPSC 39121409
