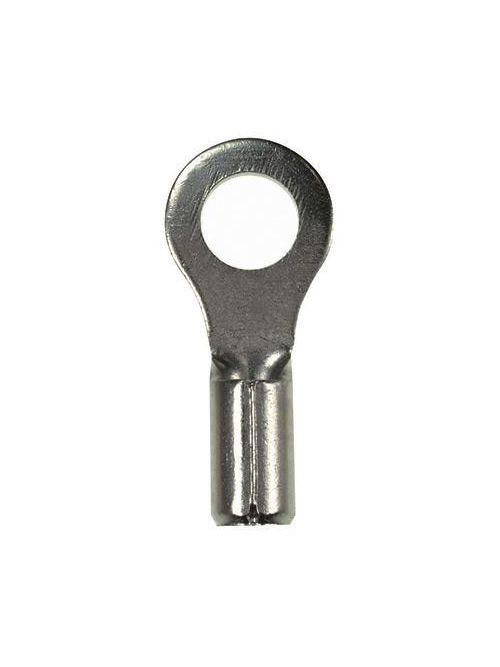

Panduit P10-10RHT6-D High Temperature Non-Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
$351.60/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P10-10RHT6-D
North Coast Part # 604718

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Minimum Operating Temperature (°C): 343
  • Minimum Operating Temperature (°F): 650
  • Stud Hole Size (mm): 10
  • Stud Size: #10
  • Stud Hole Size (In.): 39/100
  • Insulation Material: Non-Insulated
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Maximum Copper Conductor Size (AWG): #10
  • Minimum Copper Conductor Size (AWG STR): #14
  • Minimum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG): #14
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 2
  • Base Material: Copper
  • Maximum Voltage (V): 2000
  • Finish/Coating: Tin-Plated
  • Color Code: Silver
  • Barrel Length (In.): 0.31
  • Barrel Length (mm): 7.9
  • Flammability Rating: UL 587-H
  • Insulation Diameter (In.): 0.22
  • Insulation Diameter (mm): 5.6
  • Maximum Operating Temperature (°F): 650
  • Maximum Operating Temperature (°C): 343
  • Minimum Wire Insulation Diameter (mm): 5.1
  • Minimum Wire Insulation Diameter (In.): 0.2
  • Outer Diameter (In.): 0.38
  • Outer Diameter (mm): 9.6
  • Sub Brand: Pan-Term
  • Inside Diameter (mm): 3.3
  • Inside Diameter (In.): 0.13
  • Overall Length (In.): 0.81
  • Overall Length (mm): 20.6
  • Overall Width (In.): 0.38
  • Overall Width (mm): 9.6
  • Tongue Length (mm): 2.4
  • Tongue Length (In.): 0.1
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1
  • Tongue Width (In.): 0.38
  • Tongue Width (mm): 9.6
  • Packaging Type: Box
  • Product Type: Ring Terminal
  • For Use With: CT-100A, CT-200, CT-600-A (CT-570CH) CT-1570, CT-1701, CT-2500(CT-2570CH), CT-160, CT-260

Packaging Details

  • UPC: 07498380553
  • GTIN Package: 00074983805532
  • Standard Package Volume Ft3: 0.4190
  • Standard Package Weight Pounds: 1.9000
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 5.15
  • Std Package Length MM: 130.81
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.4190
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 130.81
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983805532
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498380553
GTiN 00074983805532
Finish Tin-Plated
Width 0.38 in
Type Ring Terminal
Barrel Type Beveled
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 650 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Max Operating Temperature 650 degrees F
Overall Length 0.81 in
Barrel Length 0.31 in
Color Coding Silver
Enclosure Ring shape
Sub Brand Pan-Term
Size NA
Color Silver
Min Operating Temperature 650 degrees F
Voltage 2,000 Volt
UNSPSC 39121409
