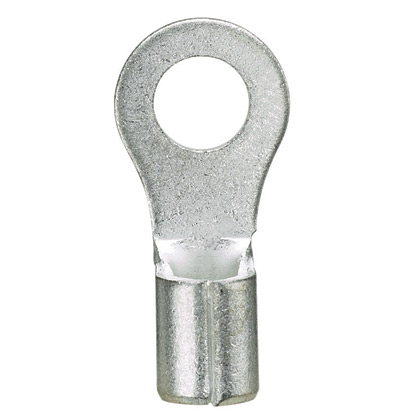

Panduit P10-14R-L 14-10 AWG Non-Insulated Ring Terminal

Specifications

• Product Segment: IEI
• Minimum Operating Temperature (°F): 302
• Minimum Operating Temperature (°C): 150
• Stud Hole Size (In.): 23/100
• Stud Hole Size (mm): 6
• Insulation Material: Non-Insulated
• Maximum Copper Conductor Size (AWG STR): #10
• Maximum Copper Conductor Size (AWG): #10
• Maximum Copper Conductor Size (AWG SOL): #10
• Maximum Wire Size (AWG): #10
• Minimum Copper Conductor Size (AWG STR): #14
• Minimum Copper Conductor Size (AWG SOL): #14
• Minimum Copper Conductor Size (AWG): #14
• Maximum Metric Conductor Size (mm²): 6
• Wire Strip Length (In.): 0.28
• Wire Strip Length (mm): 7.1
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 2
• Maximum Voltage (V): 2000
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Silver
• Barrel Length (mm): 8.9
• Barrel Length (In.): 0.35
• Flammability Rating: UL 587-H
• Insulation Diameter (In.): 0.22
• Insulation Diameter (mm): 5.6
• Maximum Operating Temperature (°F): 302
• Maximum Operating Temperature (°C): 150
• Minimum Wire Insulation Diameter (mm): 6.8
• Minimum Wire Insulation Diameter (In.): 0.27
• Outer Diameter (In.): 0.52
• Seam Type: Brazed
• Outer Diameter (mm): 13.2
• Inside Diameter (In.): 0.13
• Sub Brand: Pan-Term
• Inside Diameter (mm): 3.3
• Overall Length (mm): 24.4
• Overall Length (In.): 0.96
• Overall Width (In.): 0.52
• Overall Width (mm): 13.2
• Tongue Length (In.): 0.13
• Tongue Length (mm): 3.3
• Tongue Thickness (In.): 0.04
• Tongue Thickness (mm): 1
• Tongue Width (In.): 0.52
• Tongue Width (mm): 13.2
• Packaging Type: Box
• Product Type: Ring Terminal
• For use with: CT-100A, CT-200, CT-600-A (CT-570CH) CT-1570, CT-1701, CT-2500(CT-2570CH), CT-160, CT-260

Packaging Details

• UPC: 07498380234
• GTIN Package: 00074983802340
• Standard Package Volume Ft3: 0.0040
• Standard Package Weight Pounds: 0.2600
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983802345
• Standard Carton Volume Ft3: 0.0040
• Standard Carton Weight Pounds: 2.6000
• Std Carton Height In: 3.65
• Std Carton Height MM: 92.71
• Std Carton Length In: 9.4
• Std Carton Length MM: 91.44
• Std Carton Width In: 3.95
• Std Carton Width MM: 100.33
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983802340
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 50
