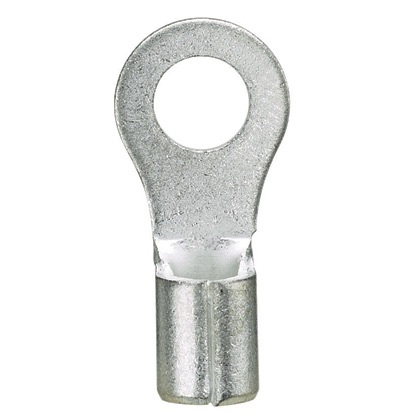

PAN P10-56R-L Ring,Non-Ins,12-10AWG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$79.16/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P10-56R-L
North Coast Part # 12382

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Minimum Operating Temperature (°F): 302
  • Minimum Operating Temperature (°C): 150
  • Stud Hole Size (mm): 6
  • Stud Size: 5/16"
  • Stud Hole Size (In.): 23/100
  • Insulation Material: Non-Insulated
  • Maximum Copper Conductor Size (AWG): #10
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Maximum Wire Size (AWG): #10
  • Minimum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG STR): #14
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 2
  • Maximum Voltage (V): 2000
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Silver
  • Barrel Length (In.): 0.35
  • Barrel Length (mm): 8.9
  • Flammability Rating: UL 587-H
  • Insulation Diameter (In.): 0.22
  • Insulation Diameter (mm): 5.6
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Minimum Wire Insulation Diameter (mm): 8.4
  • Minimum Wire Insulation Diameter (In.): 0.33
  • Outer Diameter (In.): 0.52
  • Outer Diameter (mm): 13.2
  • Inside Diameter (mm): 3.3
  • Inside Diameter (In.): 0.13
  • Sub Brand: Pan-Term
  • Overall Length (mm): 24.1
  • Overall Length (In.): 0.95
  • Overall Width (In.): 0.52
  • Overall Width (mm): 13.2
  • Tongue Length (In.): 0.13
  • Tongue Length (mm): 3.2
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Tongue Width (In.): 0.52
  • Tongue Width (mm): 13.2
  • Packaging Type: Box
  • Product Type: Ring Terminal
  • For Use With: CT-100A, CT-200, CT-600-A (CT-570CH) CT-1570, CT-1701, CT-2500(CT-2570CH), CT-160, CT-260

Packaging Details

  • UPC: 07498380236
  • GTIN Package: 00074983802364
  • Standard Package Volume Ft3: 0.0040
  • Standard Package Weight Pounds: 0.2400
  • Std Package Height In: 1.8
  • Std Package Height MM: 45.72
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983802369
  • Standard Carton Volume Ft3: 0.0040
  • Standard Carton Weight Pounds: 2.4000
  • Std Carton Height In: 3.75
  • Std Carton Height MM: 95.25
  • Std Carton Length In: 9.35
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 4.6
  • Std Carton Width MM: 116.84
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983802364
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 50
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

GTiN 00074983802364
Finish Tin-Plated
Width 0.52 in
Size M8
Type Ring Terminal
Barrel Type Beveled
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 302 F
Pkg Qty 50
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.95 in
Barrel Length 0.35 in
Color Coding Silver
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Product UPC 07498380236
Color Silver
Min Operating Temperature 302 degrees F
Voltage 2,000 Volt
UNSPSC 39121409
