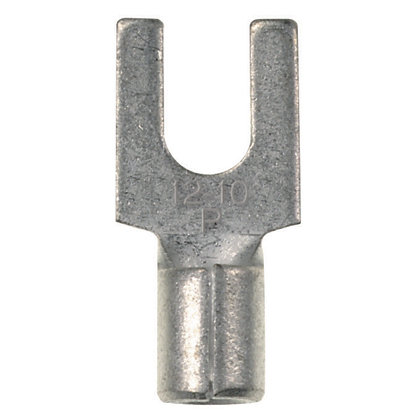

PAN P10-6F-L Fork,Non-Insul,12-10AW
$60.77/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P10-6F-L
North Coast Part # 601344

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Standard
  • Insulation Type: Non-Insulated
  • Insulation Material: NA
  • Minimum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Copper Conductor Size (AWG): #12
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Minimum Metric Conductor Size (mm²): 4
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (mm): 7.1
  • Stud Size: M3.5
  • Wire Strip Length (In.): 0.28
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 2
  • Maximum Voltage (V): 2000
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Metallic
  • Barrel Type: Beveled
  • Barrel Length (mm): 7
  • Barrel Length (In.): 0.28
  • Flammability Rating: UL 587-H
  • Maximum Operating Temperature (°C): 150
  • Maximum Operating Temperature (°F): 302
  • Seam Type: Brazed
  • Outer Diameter (In.): 0.22
  • Outer Diameter (mm): 5.6
  • Stud Hole Size (mm): 3.5
  • Stud Hole Size (In.): 1/7
  • Inside Diameter (mm): 3.3
  • Inside Diameter (In.): 0.13
  • Overall Length (mm): 19
  • Overall Length (In.): 0.75
  • Overall Width (In.): 0.31
  • Overall Width (mm): 7.9
  • Tongue Length (In.): 0.48
  • Tongue Length (mm): 12.1
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Forks
  • For Use With: CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-1701 (P10), CT-2500 (CT-2570CH), CT-160, CT-260

Packaging Details

  • UPC: 07498380516
  • GTIN Package: 00074983805167
  • Standard Package Volume Ft3: 0.0076
  • Standard Package Weight Pounds: 0.2100
  • Std Package Height In: 1.8
  • Std Package Height MM: 45.72
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983805162
  • Standard Carton Volume Ft3: 0.0076
  • Standard Carton Weight Pounds: 2.1000
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.55
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 4.15
  • Std Carton Width MM: 105.41
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983805167
  • NLD HS Code: 8535900090000000000000
  • USA HS Code: 8535908020000000000000
  • USA HS Code 10digit: 8535908020
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498380516
GTiN 00074983805167
Finish Tin-Plated
Width 0.31 in
Size M3.5
Type Loose Piece Forks
Barrel Type Beveled
Material Copper
Country of Origin MX
Wire Size 10
Temperature Rating 302 F
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 500
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.75 in
Barrel Length 0.28 in
Color Coding Metallic
Enclosure Fork shape
Sub Brand Pan-Term
Voltage null
