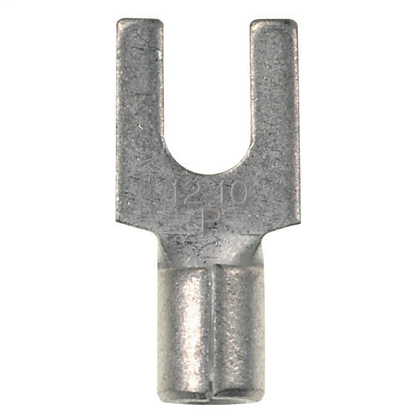

Panduit P14-10F-C 16-14 AWG Non-Insulated Fork Terminal

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Fork Type: Standard
• Insulation Type: Non-Insulated
• Insulation Material: NA
• Maximum Wire Size (AWG): #14
• Maximum Copper Conductor Size (AWG): #14
• Minimum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG STR): #14
• Maximum Copper Conductor Size (AWG SOL): #14
• Minimum Copper Conductor Size (AWG): #18
• Minimum Copper Conductor Size (AWG STR): #18
• Minimum Copper Conductor Size (AWG SOL): #18
• Minimum Metric Conductor Size (mm²): 1
• Maximum Metric Conductor Size (mm²): 2.5
• Wire Strip Length (In.): 0.28
• Stud Size: #10
• Wire Strip Length (mm): 7.1
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (V): 2000
• Maximum Voltage (kV): 2
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Metallic
• Barrel Type: Brazed
• Barrel Length (mm): 7
• Barrel Length (In.): 0.28
• Flammability Rating: UL 587-H
• Maximum Operating Temperature (°C): 150
• Maximum Operating Temperature (°F): 302
• Seam Type: Brazed
• Outer Diameter (In.): 0.14
• Outer Diameter (mm): 3.6
• Stud Hole Size (In.): 1/5
• Stud Hole Size (mm): 4.8
• Inside Diameter (mm): 1.8
• Inside Diameter (In.): 0.07
• Overall Length (In.): 0.71
• Overall Length (mm): 18
• Overall Width (mm): 8.6
• Overall Width (In.): 0.34
• Tongue Length (In.): 0.44
• Tongue Length (mm): 11
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Tongue Width (In.): 0.34
• Tongue Width (mm): 8.6
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Loose Piece Forks
• For Use With: CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-2500 (CT-2570CH), CT-160, CT-260

Packaging Details

• UPC: 07498380512
• GTIN Package: 00074983805129
• Standard Package Volume Ft3: 0.0040
• Standard Package Weight Pounds: 0.2300
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.75
• Std Package Width MM: 44.45
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983805124
• Standard Carton Volume Ft3: 0.0040
• Standard Carton Weight Pounds: 2.3000
• Std Carton Height In: 3.65
• Std Carton Height MM: 92.71
• Std Carton Length In: 9.45
• Std Carton Length MM: 91.44
• Std Carton Width In: 4.05
• Std Carton Width MM: 102.87
• Std Ctn Qty: 1000
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983805129
• NLD HS Code: 8535900090000000000000
• USA HS Code: 8535908020000000000000
• USA HS Code 10digit: 8535908020
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
