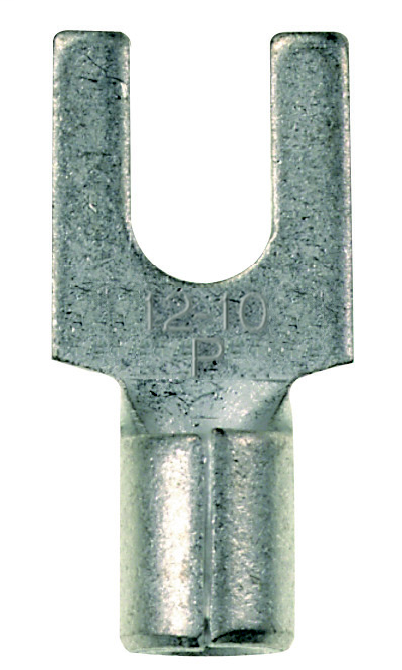

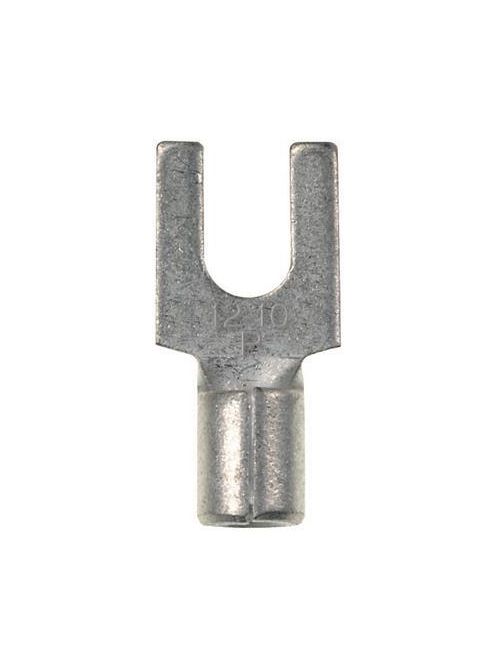

PAN P14-14F-C Fork,Non-Insul,16-14A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$63.50/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P14-14F-C
North Coast Part # 604720

Specifications

  • Stud Size: 1/4"
  • Style: Standard
  • Brand Name: Panduit
  • Wire Range: 18 - 14 AWG
  • Width In (mm): 0.44 (11.2)
  • Packaging Type: Bottle
  • Sub Brand: Type P-F
  • Type: Brazed Seam
  • Width (In.): 0.44
  • Base Material: Copper
  • Order Multiple Quantity Each: 1
  • Length (In.): 0.88
  • Order Min Qty Each: 1
  • Length (mm): 22.4
  • Width (mm): 11.2
  • Tool: CT-100A, CT-200, CT-600-A, CT-1570, CT-2500

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

Packaging Details

  • Sell Pack Packaging Description: BTL
  • Std Package Width MM: 48.26
  • Std Package Height MM: 91.44
  • Std Package Width: 1.9
  • Std Carton Width: 3.8
  • Std Carton Height: 3.7
  • Std Carton Height MM: 93.98
  • Sell Pkg Qty 1: 1
  • Std Carton Width MM: 96.52
  • UNSPSC Package Description: PACKAGE
  • GTIN Carton: 50074983805148
  • Std Carton Length: 9.4
  • Ship Pack Packaging Description: BTL
  • UNSPSC Piece UOM: EA
  • Std Package Height: 3.6
  • UNSPSC Carton UOM: CT
  • Std Package Length MM: 48.26
  • UNSPSC Piece Desription: EACH
  • UNSPSC Carton Description: CARTON
  • GTIN Package: 00074983805143
  • Std Carton Length MM: 238.76
  • Std Package Length: 1.9
  • UNSPSC Package UOM: PK
  • Part Number Full UPC: 7498380514
  • Minimum Order Quantity: 100
  • Standard Package Quantity: 100
  • Stanard Carton Quantity: 1000
  • Standard Package Weight: 0.29499999999999998
  • Standard Carton Weight: 2.95

Certifications & Approvals

  • CSA Certified: C22.2 No.65
  • Standards: Yes - American Bureau of Shipping (ABS)
  • RoHS Compliancy Status: Compliant
  • ARRA Compliant: Y
  • UL Listed: UL486A-486B
  • Ozone Depleting Compounds: N
  • ECCN Commodity Code: EAR99
  • MSDS Indicator: N
  • CE Compliant: No
  • Buy American Compliant: Y
  • CE Marking: No

Additional Specifications

  • Clearance (mm): 8.4
  • Stud Size In. (mm): 1/4" (M6)
  • Hazardous Material Flag: N
  • UOM EA Pk: PK
  • Clearance: 0.33
  • Max. Voltage Rating: 2000 V
  • Wire Range (mm²): 1.0 - 2.5
  • Wire Range In. (mm²): 18 - 14 AWG (1.0 - 2.5)
  • Part Number Series: P
  • Country of Origin Description: Mexico
  • Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
  • Insulation: Non-Insulated
  • NMFC Rate: 70
  • UNSPSC: 39121409
  • Wire Strip Length In. (mm): 9/32" (.2812) - (7.1)
  • Master Pack Packaging Description: PKG
  • Barrel Type: Brazed Seam
  • Unit Volume: .000076
  • Gross Volume UOM: CU
  • Panduit Color Code: Metallic
  • Country of Origin 2Digit: MX
  • Stock (mm): 0.8
  • Product Group Assignment: Terminals
  • Master Pack Quantity: 10
  • Barrel Configuration: Standard
  • Unit Weight: .00295
  • Stock: 0.03
  • Plating Type: Tinned
  • Lowest Level UOM: EA
  • Stud Size Metric: M6

Overview

GTiN 00074983805143
Length .88 in
Finish Tin-Plated
Width .44 in
Size M6
Type Loose Piece Forks
Barrel Type Brazed Seam
Insulation Type Non-Insulated
Material Copper
Country of Origin Mexico
Wire Size 18-14 AWG
Base Material Copper
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.88 in
Max Voltage 2000 V
Color Coding Metallic
Enclosure Fork shape
Sub Brand Pan-Term
Product UPC 07498380514
Voltage 2,000 Volt
Barrel Length 0.32 in
UNSPSC 39121409
Product Type Terminals
