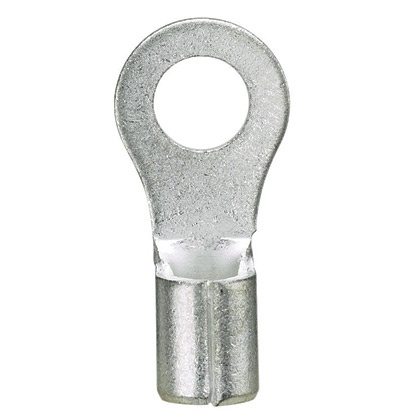

Panduit P14-14R-M 18-14 AWG Non-Insulated Ring Terminal
$215.66/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P14-14R-M
North Coast Part # 820657

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Minimum Operating Temperature (°F): 302
  • Minimum Operating Temperature (°C): 150
  • Stud Size: 1/4"
  • Insulation Material: Non-Insulated
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Minimum Copper Conductor Size (AWG SOL): #18
  • Minimum Copper Conductor Size (AWG): #18
  • Minimum Copper Conductor Size (AWG STR): #18
  • Maximum Metric Conductor Size (mm²): 2.5
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Standards Met: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
  • Maximum Voltage (kV): 2
  • Base Material: Copper
  • Maximum Voltage (V): 2000
  • Finish/Coating: Tin-Plated
  • Color Code: Silver
  • Barrel Length (In.): 0.34
  • Barrel Length (mm): 8.6
  • Flammability Rating: UL 587-H
  • Insulation Diameter (In.): 0.16
  • Insulation Diameter (mm): 4.1
  • Maximum Operating Temperature (°C): 150
  • Maximum Operating Temperature (°F): 302
  • Minimum Wire Insulation Diameter (In.): 0.52
  • Minimum Wire Insulation Diameter (mm): 13.2
  • Outer Diameter (In.): 0.46
  • Seam Type: Brazed
  • Outer Diameter (mm): 11.7
  • Inside Diameter (mm): 2.3
  • Sub Brand: Pan-Term
  • Inside Diameter (In.): 0.09
  • Overall Length (In.): 0.91
  • Overall Length (mm): 23.1
  • Overall Width (In.): 0.46
  • Overall Width (mm): 11.7
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.46
  • Tongue Width (mm): 11.7
  • Packaging Type: Bottle
  • Product Type: Ring Terminal
  • For use with: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260

Packaging Details

  • UPC: 07498380223
  • GTIN Package: 00074983802234
  • Standard Package Volume Ft3: 0.5972
  • Standard Package Weight Pounds: 2.6000
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.1
  • Std Package Length MM: 180.34
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.5972
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 180.34
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983802234
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498380223
GTiN 00074983802234
Finish Tin-Plated
Width 0.46 in
Size M6
Type Ring Terminal
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Wire Size 18-14 AWG
Temperature Rating 302 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.91 in
Barrel Length 0.34 in
Color Coding Silver
Enclosure Ring shape
Sub Brand Pan-Term
Color Silver
Min Operating Temperature 302 degrees F
Voltage null
UNSPSC 39121409
