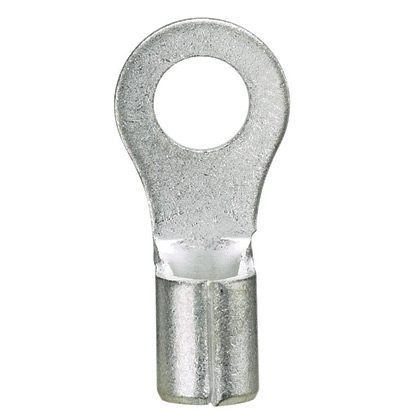

Panduit P14-38R-C 18-14 AWG Non-Insulated Ring Terminal

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Minimum Operating Temperature (°C): 150
• Minimum Operating Temperature (°F): 302
• Insulation Material: Non-Insulated
• Maximum Copper Conductor Size (AWG): #14
• Maximum Copper Conductor Size (AWG STR): #14
• Maximum Copper Conductor Size (AWG SOL): #14
• Maximum Wire Size (AWG): #14
• Minimum Copper Conductor Size (AWG STR): #18
• Minimum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG): #18
• Maximum Metric Conductor Size (mm²): 2.5
• Wire Strip Length (mm): 7.1
• Wire Strip Length (In.): 0.28
• Standards Met: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
• Base Material: Copper
• Maximum Voltage (kV): 2
• Maximum Voltage (V): 2000
• Finish/Coating: Tin-Plated
• Color Code: Silver
• Barrel Type: Brazed Seam
• Barrel Length (In.): 0.37
• Barrel Length (mm): 9.3
• Flammability Rating: UL 587-H
• Insulation Diameter (mm): 4.1
• Insulation Diameter (In.): 0.16
• Maximum Operating Temperature (°F): 302
• Maximum Operating Temperature (°C): 150
• Minimum Wire Insulation Diameter (mm): 10.2
• Minimum Wire Insulation Diameter (In.): 0.4
• Outer Diameter (In.): 0.53
• Outer Diameter (mm): 13.5
• Inside Diameter (In.): 0.09
• Inside Diameter (mm): 2.3
• Overall Length (In.): 0.91
• Overall Length (mm): 23.1
• Overall Width (In.): 0.53
• Overall Width (mm): 13.5
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Tongue Width (In.): 0.53
• Tongue Width (mm): 13.5
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Ring Terminal
• For Use With: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260

Packaging Details

• UPC: 07498380226
• GTIN Package: 00074983802265
• Standard Package Volume Ft3: 0.0063
• Standard Package Weight Pounds: 0.2900
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983802260
• Standard Carton Volume Ft3: 0.0063
• Standard Carton Weight Pounds: 2.9000
• Std Carton Height In: 3.7
• Std Carton Height MM: 93.98
• Std Carton Length In: 9.6
• Std Carton Length MM: 91.44
• Std Carton Width In: 4
• Std Carton Width MM: 101.6
• Std Ctn Qty: 1000
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983802265
• NLD HS Code: 8535900090000000000000
• USA HS Code: 8535908020000000000000
• USA HS Code 10digit: 8535908020
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
