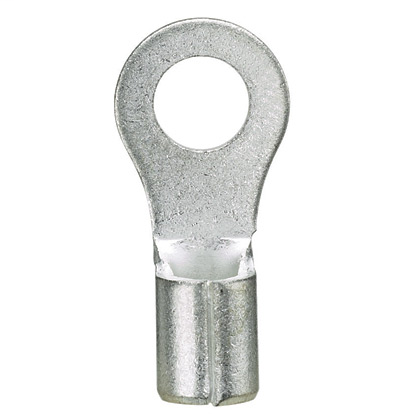

PAN P14-4R-C Ring,Non-Insul,16-14AW
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$46.72/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P14-4R-C
North Coast Part # 601349

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Minimum Operating Temperature (°C): 150
  • Minimum Operating Temperature (°F): 302
  • Stud Size: #4
  • Insulation Material: Non-Insulated
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG SOL): #18
  • Minimum Copper Conductor Size (AWG): #18
  • Minimum Copper Conductor Size (AWG STR): #18
  • Maximum Metric Conductor Size (mm²): 2.5
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Standards Met: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
  • Maximum Voltage (V): 2000
  • Maximum Voltage (kV): 2
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Silver
  • Barrel Length (mm): 6.4
  • Barrel Length (In.): 0.25
  • Flammability Rating: UL 587-H
  • Insulation Diameter (mm): 4.1
  • Insulation Diameter (In.): 0.16
  • Maximum Operating Temperature (°C): 150
  • Maximum Operating Temperature (°F): 302
  • Minimum Wire Insulation Diameter (mm): 3
  • Minimum Wire Insulation Diameter (In.): 0.12
  • Seam Type: Brazed
  • Outer Diameter (In.): 0.25
  • Outer Diameter (mm): 6.4
  • Inside Diameter (In.): 0.09
  • Inside Diameter (mm): 2.3
  • Sub Brand: Pan-Term
  • Overall Length (In.): 0.62
  • Overall Length (mm): 15.7
  • Overall Width (mm): 6.4
  • Overall Width (In.): 0.25
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.25
  • Tongue Width (mm): 6.4
  • Packaging Type: Bottle
  • Product Type: Ring Terminal
  • For Use With: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260

Packaging Details

  • UPC: 07498380214
  • GTIN Package: 00074983802142
  • Standard Package Volume Ft3: 0.0040
  • Standard Package Weight Pounds: 0.2000
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983802147
  • Standard Carton Volume Ft3: 0.0040
  • Standard Carton Weight Pounds: 2.0000
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.55
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 3.8
  • Std Carton Width MM: 96.52
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983802142
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498380214
Item Long Description Ring Terminal, Non-Insulated, 18 - 14 American Wire Gauge (AWG), No. 4 Stud Size. Ring tongue design assures a secure connection in high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel of terminal internally beveled to provide quick and easy wire insertion. Maximum recommended operating temperature 302 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 2000 Volts per UL 486A/B. Standard Package.
GTiN 00074983802142
Finish Tin-Plated
Width 0.25 in
Size M2.5
Type Ring Terminal
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Wire Size 18-14 AWG
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.62 in
Barrel Length 0.25 in
Color Coding Silver
Enclosure Ring shape
Sub Brand Pan-Term
Color Silver
Min Operating Temperature 302 degrees F
Voltage 2,000 Volt
UNSPSC 39121409
