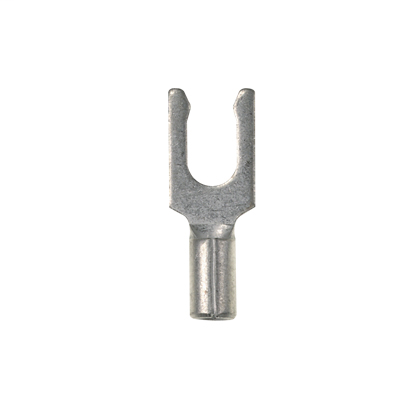

PAN P14-6LF-C Fork,Lock,Non-Ins,16-

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Fork Type: Locking Fork
• Insulation Material: NA
• Insulation Type: Non-Insulated
• Maximum Copper Conductor Size (AWG SOL): #14
• Maximum Copper Conductor Size (AWG): #14
• Minimum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG STR): #14
• Maximum Wire Size (AWG): #14
• Minimum Copper Conductor Size (AWG STR): #18
• Minimum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG): #18
• Minimum Metric Conductor Size (mm²): 1
• Maximum Metric Conductor Size (mm²): 2.5
• Stud Size: #6
• Wire Strip Length (mm): 7.1
• Wire Strip Length (In.): 0.28
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (V): 2000
• Maximum Voltage (kV): 2
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Metallic
• Barrel Type: Beveled
• Barrel Length (In.): 0.24
• Barrel Length (mm): 6.1
• Flammability Rating: UL 587-H
• Maximum Operating Temperature (°F): 302
• Maximum Operating Temperature (°C): 150
• Seam Type: Brazed
• Outer Diameter (In.): 0.16
• Outer Diameter (mm): 4.1
• Stud Hole Size (In.): 1/7
• Stud Hole Size (mm): 3.5
• Inside Diameter (In.): 0.09
• Inside Diameter (mm): 2.3
• Overall Length (mm): 17.8
• Overall Length (In.): 0.7
• Overall Width (In.): 0.25
• Overall Width (mm): 6.4
• Tongue Length (In.): 0.46
• Tongue Length (mm): 11.7
• Tongue Thickness (mm): 0.8
• Sub Brand: Pan-Term
• Tongue Thickness (In.): 0.03
• Tongue Width (In.): 0.25
• Tongue Width (mm): 6.4
• Packaging Type: Bottle
• Product Type: Loose Piece Forks
• For use with: CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-1701 (P10), CT-2500 (CT-2570CH), CT-160, CT-260

Packaging Details

• UPC: 07498380906
• GTIN Package: 00074983809066
• Standard Package Volume Ft3: 0.0074
• Standard Package Weight Pounds: 0.2400
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983809061
• Standard Carton Volume Ft3: 0.0074
• Standard Carton Weight Pounds: 1.2000
• Std Carton Height In: 3.6
• Std Carton Height MM: 91.44
• Std Carton Length In: 9.3
• Std Carton Length MM: 91.44
• Std Carton Width In: 2.1
• Std Carton Width MM: 53.34
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983809066
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
