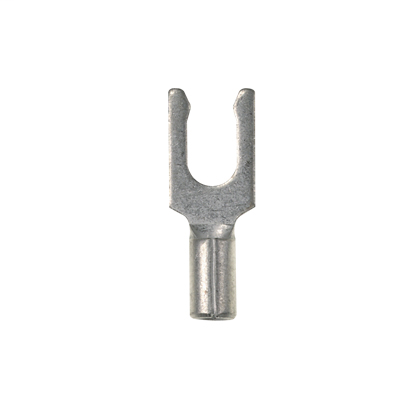

Panduit P14-8LF-C 18-14 AWG Non-Insulated Locking Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$59.82/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P14-8LF-C
North Coast Part # 601359

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Locking Fork
  • Insulation Type: Non-Insulated
  • Insulation Material: NA
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Minimum Wire Size (AWG): #18
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Wire Size (AWG): #14
  • Minimum Copper Conductor Size (AWG SOL): #18
  • Minimum Copper Conductor Size (AWG STR): #18
  • Minimum Copper Conductor Size (AWG): #18
  • Minimum Metric Conductor Size (mm²): 1
  • Maximum Metric Conductor Size (mm²): 2.5
  • Stud Size: #8
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 2
  • Maximum Voltage (V): 2000
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Metallic
  • Barrel Type: Beveled
  • Barrel Length (In.): 0.27
  • Barrel Length (mm): 6.7
  • Flammability Rating: UL 587-H
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Seam Type: Brazed
  • Outer Diameter (mm): 4.1
  • Outer Diameter (In.): 0.16
  • Stud Hole Size (mm): 4.2
  • Stud Hole Size (In.): 4/25
  • Inside Diameter (mm): 2.3
  • Inside Diameter (In.): 0.09
  • Overall Length (mm): 19.6
  • Overall Length (In.): 0.77
  • Overall Width (In.): 0.29
  • Overall Width (mm): 7.4
  • Tongue Length (In.): 0.51
  • Tongue Length (mm): 12.8
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (mm): 7.4
  • Tongue Width (In.): 0.29
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Forks
  • For Use With: CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-1701 (P10), CT-2500 (CT-2570CH), CT-160, CT-260

Packaging Details

  • UPC: 07498380908
  • GTIN Package: 00074983809080
  • Standard Package Volume Ft3: 0.0074
  • Standard Package Weight Pounds: 0.2400
  • Std Package Height In: 3.6
  • Std Package Height MM: 91.44
  • Std Package Length In: 1.9
  • Std Package Length MM: 48.26
  • Std Package Width In: 1.9
  • Std Package Width MM: 48.26
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983809085
  • Standard Carton Volume Ft3: 0.0074
  • Standard Carton Weight Pounds: 1.2000
  • Std Carton Height In: 3.6
  • Std Carton Height MM: 91.44
  • Std Carton Length In: 9.3
  • Std Carton Length MM: 48.26
  • Std Carton Width In: 1.9
  • Std Carton Width MM: 48.26
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983809080
  • USA HS Code: 8535908020000000000000
  • USA HS Code 10digit: 8535908020
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498380908
Item Long Description Locking Fork Terminal, non-insulated, 18- 14 AWG, #8 stud size, standard package.
GTiN 00074983809080
Length .77 in
Finish Tin Plated
Width 0.29 in
Type Loose Piece Forks
Barrel Type Beveled
Insulation Type Non-Insulated
Material Copper
Country of Origin MX
Wire Size 18-14 AWG
Base Material Copper
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.77 in
Max Voltage 2000 V
Color Coding Metallic
Enclosure Fork shape
Sub Brand Pan-Term
Size NA
Voltage 2,000 Volt
Barrel Length 0.27 in
UNSPSC 39121409
