PAN P18-10LFN-C Fork,Lock,Non-Ins,2

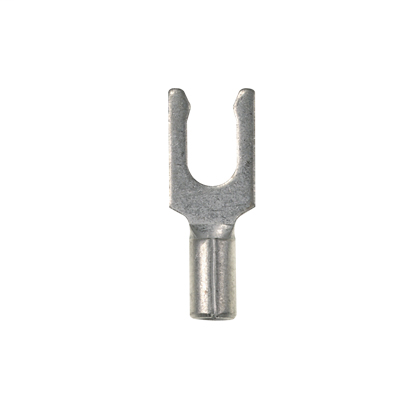

Product image thumbnail 0

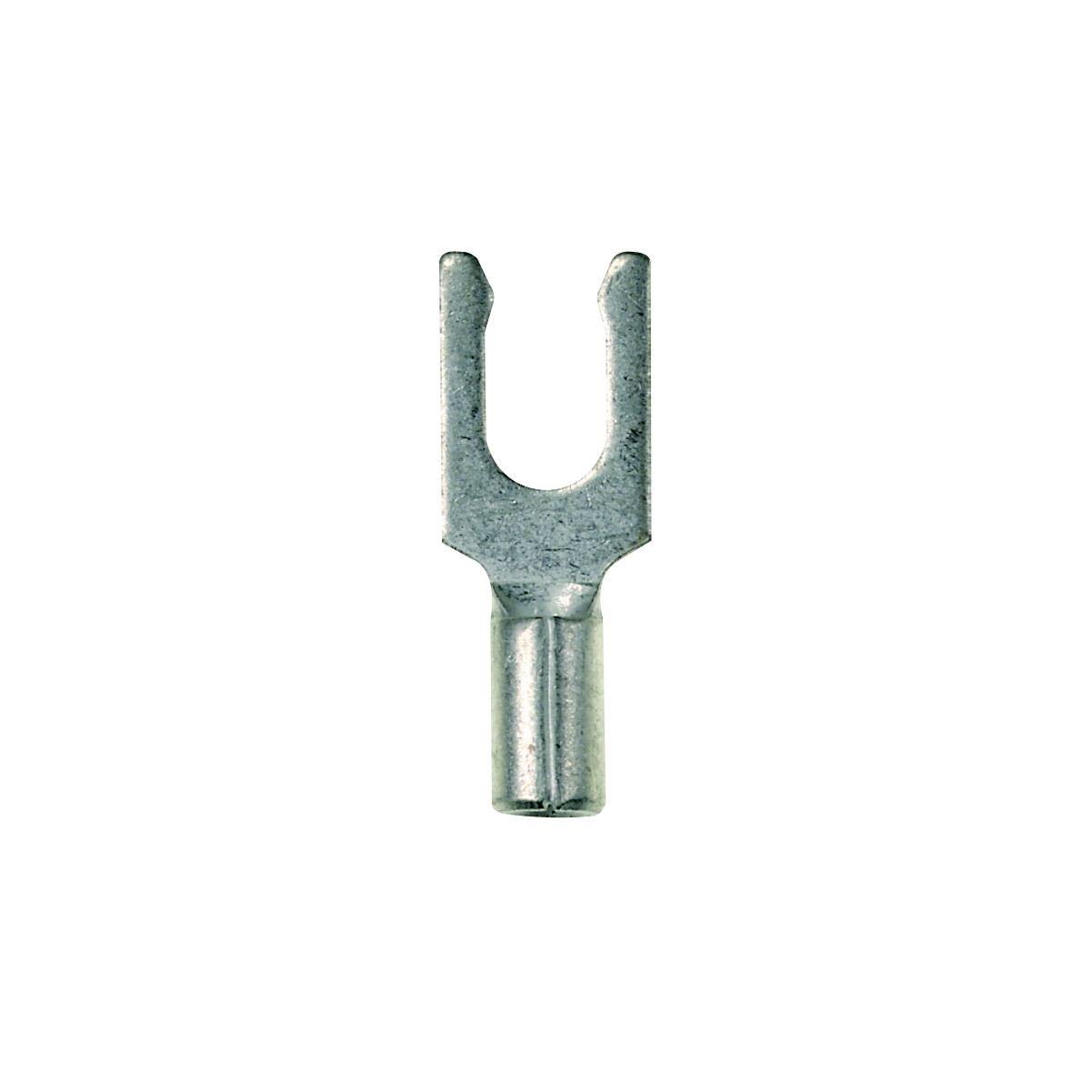

Product image thumbnail 1
$55.32/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P18-10LFN-C
North Coast Part # 601363

Specifications

  • Packaging Type: Bottle
  • Width In (mm): 0.28 (7.1)
  • Sub Brand: Type P-LFN
  • Width (In.): 0.28
  • Base Material: Copper
  • Brand Name: Panduit
  • Tool: CT-100A, CT-200, CT-600-A, CT-1570, CT-2500
  • Order Multiple Quantity Each: 1
  • Stud Size: #10
  • Width (mm): 7.1
  • Order Min Qty Each: 1
  • Wire Range: 22 - 16 AWG
  • Length (In.): 0.74
  • Style: Locking Fork Narrow
  • Length (mm): 18.8

Documents

Catalog Cut Sheets

Part Drawings

Selection Guides

Packaging Details

  • UNSPSC Piece UOM: EA
  • Std Carton Height MM: 91.44
  • Std Carton Height: 3.6
  • Sell Pkg Qty 1: 1
  • Std Package Height: 3.6
  • Std Carton Length: 9.2
  • UNSPSC Package Description: PACKAGE
  • Std Package Length: 1.9
  • Std Carton Width MM: 50.8
  • Std Carton Length MM: 233.68
  • Std Package Width MM: 48.26
  • Ship Pack Packaging Description: BTL
  • Std Package Height MM: 91.44
  • UNSPSC Carton UOM: CT
  • GTIN Carton: 50074983808576
  • GTIN Package: 00074983808571
  • Std Carton Width: 2
  • Std Package Length MM: 48.26
  • UNSPSC Package UOM: PK
  • UNSPSC Piece Desription: EACH
  • Sell Pack Packaging Description: BTL
  • Std Package Width: 1.9
  • UNSPSC Carton Description: CARTON
  • Part Number Full UPC: 7498380857
  • Minimum Order Quantity: 100
  • Standard Package Quantity: 100
  • Stanard Carton Quantity: 500
  • Standard Package Weight: 0.22
  • Standard Carton Weight: 1.1000000000000001

Certifications & Approvals

  • ARRA Compliant: Y
  • CE Compliant: No
  • MSDS Indicator: N
  • Standards: Yes - American Bureau of Shipping (ABS)
  • UL Listed: UL486A-486B
  • ECCN Commodity Code: EAR99
  • CE Marking: No
  • Buy American Compliant: Y
  • CSA Certified: C22.2 No.65
  • Ozone Depleting Compounds: N
  • RoHS Compliancy Status: Compliant

Additional Specifications

  • Product Group Assignment: Terminals
  • NMFC Rate: 70
  • UNSPSC: 39121409
  • Stock: 0.03
  • Panduit Color Code: Metallic
  • Barrel Type: Brazed Seam
  • UOM EA Pk: PK
  • Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
  • Unit Weight: .0022
  • Insulation: Non-Insulated
  • Stud Size In. (mm): #10
  • Barrel Configuration: Standard
  • Stock (mm): 0.8
  • Plating Type: Tinned
  • Country of Origin Description: Mexico
  • Wire Range In. (mm²): 22 - 16 AWG (0.5 - 1.0)
  • Unit Volume: .000076
  • Master Pack Quantity: 5
  • Clearance (mm): 5.8
  • Part Number Series: P-LFN
  • Wire Strip Length In. (mm): 9/32" (.2812) - (7.1)
  • Max. Voltage Rating: 2000 V
  • Hazardous Material Flag: N
  • Clearance: 0.23
  • Wire Range (mm²): 0.5 - 1.5
  • Country of Origin 2Digit: MX
  • Master Pack Packaging Description: PKG
  • Lowest Level UOM: EA
  • Gross Volume UOM: CU

Overview

UPC 07498380857
Item Long Description Locking Fork Terminal, non-insulated, 22 16 AWG, #10 stud size, narrow tongue.
GTiN 00074983808571
Finish Tin-Plated
Width .28 in
Type Loose Piece Forks
Barrel Type Brazed Seam
Material Copper
Country of Origin Mexico
Wire Size 22-16 AWG
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.74 in
Barrel Length 0.27 in
Color Coding Metallic
Enclosure Fork shape
Sub Brand Pan-Term
Size NA
UNSPSC 39121409
Length .74 in
Product Type Terminals
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
