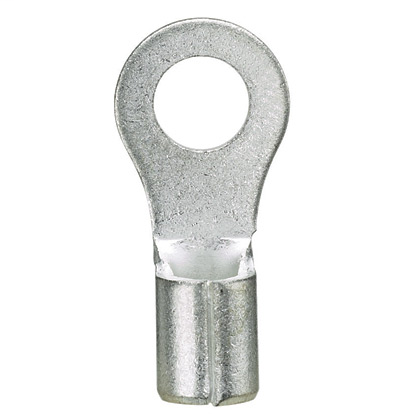

PAN P18-38R-M Ring,Non-Ins,22-16AWG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$279.31/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P18-38R-M
North Coast Part # 763014

Specifications

  • Order Multiple Quantity Each: 1
  • Order Min Qty Each: 1
  • Base Material: Copper
  • Stud Size: 3/8"
  • Tool: CT-100A, CT-200, CT-600-A, CT-1570, CT-2500
  • Width (In.): 0.53
  • Brand Name: Panduit
  • Length (mm): 25.4
  • Wire Range: 22 - 16 AWG
  • Length (In.): 1.00
  • Flammability Rating: —
  • Width (mm): 13.5
  • Sub Brand: Type P-R
  • Packaging Type: Box
  • Type: Brazed Seam

Documents

Part Drawings

Selection Guides

Packaging Details

  • Std Carton Width: 3.4
  • Std Carton Length: 7.2
  • Ship Pack Packaging Description: BOX
  • UNSPSC Piece Desription: EACH
  • Std Carton Length MM: 182.88
  • Std Carton Height MM: 83.82
  • Std Package Width MM: 86.36
  • Std Carton Width MM: 86.36
  • Sell Pack Packaging Description: BOX
  • Std Package Length: 7.2
  • Std Package Length MM: 182.88
  • Sell Pkg Qty 1: 1
  • Std Package Width: 3.4
  • UNSPSC Carton UOM: CT
  • Std Package Height: 3.4
  • Std Carton Height: 3.3
  • UNSPSC Carton Description: CARTON
  • GTIN Carton: 50074983802130
  • UNSPSC Piece UOM: EA
  • Std Package Height MM: 86.36
  • UNSPSC Package Description: PACKAGE
  • GTIN Package: 00074983802135
  • UNSPSC Package UOM: PK
  • Part Number Full UPC: 7498380213
  • Minimum Order Quantity: 1000
  • Standard Package Quantity: 1000
  • Stanard Carton Quantity: 10000
  • Standard Package Weight: 0.23
  • Standard Carton Weight: 2.2999999999999998

Certifications & Approvals

  • CSA Certified: C22.2 No. 65
  • MSDS Indicator: N
  • CE Compliant: No
  • ECCN Commodity Code: EAR99
  • UL Listed: UL486A-486B
  • Ozone Depleting Compounds: N
  • RoHS Compliancy Status: Compliant
  • ARRA Compliant: Y
  • CE Marking: No
  • Buy American Compliant: Y

Additional Specifications

  • Unit Weight: .00023
  • Country of Origin Description: Mexico
  • UOM EA Pk: PK
  • Gross Volume UOM: CU
  • Stock: 0.03
  • Clearance: 0.43
  • Barrel Type: Brazed Seam
  • Country of Origin 2Digit: MX
  • Master Pack Quantity: 10
  • Wire Strip Length (mm): 7.1
  • Lowest Level UOM: EA
  • CA9 Series Crimp Die: —
  • Max. Voltage Rating: 2000 V
  • Hazardous Material Flag: N
  • Unit Volume: .0000047
  • NMFC Rate: 70
  • Stock (mm): 0.8
  • Mil. Std. Part Number: —
  • Plating Type: Tinned
  • Wire Range (mm²): 0.5 - 1.5
  • Barrel Configuration: Standard
  • Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
  • CA-800/EZ Series Crimp Die: —
  • Clearance (mm): 10.9
  • Panduit Color Code: Metallic
  • Part Number Series: P
  • Master Pack Packaging Description: CTN
  • Insulation: Non-Insulated
  • Product Group Assignment: Terminals
  • Wire Strip Length (In.): 9/32" (.2812)
  • UNSPSC: 39121409

Overview

UPC 07498380213
Item Long Description Ring Terminal, 22 16 AWG, 3/8" stud size, non-insulated, bulk package.
GTiN 00074983802135
Length 1 in
Finish Tin-Plated
Width .53 in
Size M10
Type Ring Terminal
Barrel Type Brazed Seam
Insulation Type Non-Insulated
Material Copper
Wire Size 22-16 AWG
Base Material Copper
Temperature Rating 302 F
Family Brand Name Panduit
Buy American Compliant Yes
CE Compliant No
ARRA Compliant Yes
Hazmat Flag No
TC Connection Standard
Max Voltage 2000 V
Enclosure Ring shape
Sub Brand Pan-Term
Color Silver
Country of Origin Mexico
Pkg Qty 1000
Max Operating Temperature 302 degrees F
Overall Length 1 in
Color Coding Silver
Barrel Length 0.37 in
Min Operating Temperature 221 degrees F
UNSPSC 39121409
Product Type Terminals
