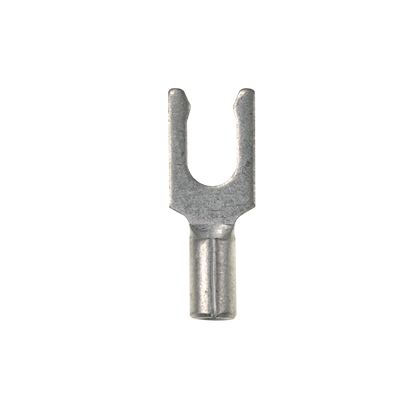

Panduit P18-6LF-C 22-16 AWG Non-Insulated Locking Fork Terminal

$59.82/c (100 ea)

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	Panduit
Mfg Catalog #	P18-6LF-C
North Coast Part #	601366

Specifications

Product Segment: IEI
UNSPSC: 39121409
Fork Type: Locking Fork
Insulation Type: Non-Insulated
Insulation Material: Non-Insulated
Minimum Wire Size (AWG): #22
Maximum Wire Size (AWG): #16
Maximum Copper Conductor Size (AWG STR): #16
Maximum Copper Conductor Size (AWG SOL): #16
Maximum Copper Conductor Size (AWG): #16
Minimum Copper Conductor Size (AWG): #22
Minimum Copper Conductor Size (AWG SOL): #22
Minimum Copper Conductor Size (AWG STR): #22
Minimum Metric Conductor Size (mm²): 0.5
Maximum Metric Conductor Size (mm²): 1.5
Wire Strip Length (In.): 0.28
Wire Strip Length (mm): 7.1
Stud Size: #6
Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Maximum Voltage (kV): 2
Maximum Voltage (V): 2000
Finish/Coating: Tin-Plated
Base Material: Copper
Color Code: Metallic
Barrel Type: Brazed
Barrel Length (In.): 0.24
Barrel Length (mm): 6.1
Flammability Rating: UL 587-H
Maximum Operating Temperature (°F): 302
Maximum Operating Temperature (°C): 150
Seam Type: Brazed
Outer Diameter (In.): 0.14
Outer Diameter (mm): 3.6
Stud Hole Size (In.): 1/7
Stud Hole Size (mm): 3.5
Inside Diameter (In.): 0.07
Inside Diameter (mm): 1.8
Overall Length (In.): 0.68
Overall Length (mm): 17.3
Overall Width (In.): 0.27
Overall Width (mm): 6.9
Tongue Length (In.): 0.44
Tongue Length (mm): 11.2
Tongue Thickness (In.): 0.03
Tongue Thickness (mm): 0.8
Sub Brand: Pan-Term
Tongue Width (In.): 0.27
Tongue Width (mm): 6.9
Packaging Type: Bottle
Product Type: Loose Piece Forks
For Use With: CT-100A, CT-200, CT-600-A (CT-570CH), CT-1570, CT-2500 (CT-2570CH), CT-160, CT-260

Packaging Details

UPC: 07498380900
GTIN Package: 00074983809004
Standard Package Volume Ft3: 0.0072
Standard Package Weight Pounds: 0.1900
Std Package Height In: 1.75
Std Package Height MM: 44.45
Std Package Length In: 3.6
Std Package Length MM: 91.44
Std Package Width In: 1.8
Std Package Width MM: 45.72
Std. Pkg. UOM: Piece
UOM EA PK: PK
Std. Pkg. Qty.: 100
GTIN Carton: 50074983809009
Standard Carton Volume Ft3: 0.0072
Standard Carton Weight Pounds: 0.9500
Std Carton Height In: 3.75
Std Carton Height MM: 95.25
Std Carton Length In: 9.65
Std Carton Length MM: 91.44
Std Carton Width In: 2.3
Std Carton Width MM: 58.42
Std Ctn Qty: 500
Min. Order UOM: Piece
Country of Origin 2Digit: MX
RoHS Compliant: Compliant
EAN: 00074983809004
REACH Status: False
Buy American Compliant: Y
ARRA Compliant: Y
Mercury Content Indicator: No
Hazardous Material Flag: N
Min Order Qty: 100

Overview

UPC	07498380900
Item Long Description	Locking Fork Terminal, Non-Insulated, 22 - 16 American Wire Gauge (AWG), No. 6 Stud Size. Locks in place for secure connection. Fork design provides for fast and easy installation, without the need to remove fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel of terminal internally beveled to provide quick and easy wire insertion. Maximum recommended operating temperature 302 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 2000 Volts per UL 486A/B. Standard Package.
GTiN	00074983809004
Finish	Tin-Plated
Width	0.27 in
Type	Loose Piece Forks
Barrel Type	Brazed
Material	Copper
Country of Origin	MX
Wire Size	22-16 AWG
Temperature Rating	302 F
Pkg Qty	100
Family Brand Name	Panduit
TC Connection	Standard
Max Operating Temperature	302 degrees F
Overall Length	0.68 in
Barrel Length	0.24 in
Color Coding	Metallic
Enclosure	Fork shape
Sub Brand	Pan-Term
Size	NA
Voltage	2,000 Volt
UNSPSC	39121409
