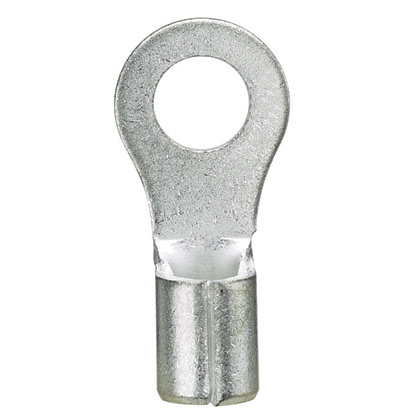

PAN P18-6R-C Ring,Non-Insul,22-16AW

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Minimum Operating Temperature (°F): 221
• Minimum Operating Temperature (°C): 105
• Stud Size: #6
• Insulation Material: Non-Insulated
• Maximum Copper Conductor Size (AWG): #18
• Maximum Copper Conductor Size (AWG SOL): #16
• Maximum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG STR): #16
• Minimum Copper Conductor Size (AWG): #22
• Minimum Copper Conductor Size (AWG SOL): #22
• Minimum Copper Conductor Size (AWG STR): #22
• Maximum Metric Conductor Size (mm²): 1
• Wire Strip Length (In.): 0.28
• Wire Strip Length (mm): 7.1
• Standards Met: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
• Maximum Voltage (kV): 2
• Maximum Voltage (V): 2000
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Silver
• Barrel Length (In.): 0.25
• Barrel Length (mm): 6.4
• Flammability Rating: UL 587-H
• Insulation Diameter (In.): 0.14
• Insulation Diameter (mm): 3.6
• Maximum Operating Temperature (°F): 302
• Maximum Operating Temperature (°C): 150
• Minimum Wire Insulation Diameter (mm): 3.8
• Minimum Wire Insulation Diameter (In.): 0.15
• Outer Diameter (In.): 0.25
• Seam Type: Brazed
• Outer Diameter (mm): 6.4
• Inside Diameter (mm): 1.8
• Sub Brand: Pan-Term
• Inside Diameter (In.): 0.07
• Overall Length (mm): 15.7
• Overall Length (In.): 0.62
• Overall Width (mm): 6.4
• Overall Width (In.): 0.25
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Tongue Width (In.): 0.25
• Tongue Width (mm): 6.4
• Packaging Type: Bottle
• Product Type: Ring Terminal
• For use with: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260

Packaging Details

• UPC: 07498380202
• GTIN Package: 00074983802029
• Standard Package Volume Ft3: 0.0040
• Standard Package Weight Pounds: 0.1800
• Std Package Height In: 1.8
• Std Package Height MM: 45.72
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983802024
• Standard Carton Volume Ft3: 0.0040
• Standard Carton Weight Pounds: 1.8000
• Std Carton Height In: 3.8
• Std Carton Height MM: 96.52
• Std Carton Length In: 9.55
• Std Carton Length MM: 91.44
• Std Carton Width In: 4
• Std Carton Width MM: 101.6
• Std Ctn Qty: 1000
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983802029
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 100
