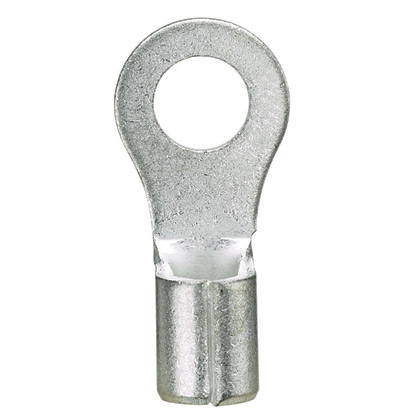

Panduit P18-8R-C 22-16 AWG Non-Insulated Ring Terminal
$44.89/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P18-8R-C
North Coast Part # 601370

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Minimum Operating Temperature (°F): 221
  • Minimum Operating Temperature (°C): 105
  • Stud Size: #8
  • Insulation Material: Non-Insulated
  • Maximum Copper Conductor Size (AWG SOL): #16
  • Maximum Copper Conductor Size (AWG): #18
  • Maximum Copper Conductor Size (AWG STR): #16
  • Maximum Wire Size (AWG): #18
  • Minimum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Minimum Copper Conductor Size (AWG STR): #22
  • Maximum Metric Conductor Size (mm²): 1
  • Wire Strip Length (In.): 0.28
  • Wire Strip Length (mm): 7.1
  • Standards Met: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260
  • Base Material: Copper
  • Maximum Voltage (V): 2000
  • Maximum Voltage (kV): 2
  • Finish/Coating: Tin-Plated
  • Color Code: Silver
  • Barrel Length (In.): 0.28
  • Barrel Length (mm): 7
  • Flammability Rating: UL 587-H
  • Insulation Diameter (In.): 0.14
  • Insulation Diameter (mm): 3.6
  • Maximum Operating Temperature (°C): 150
  • Maximum Operating Temperature (°F): 302
  • Minimum Wire Insulation Diameter (mm): 4.3
  • Minimum Wire Insulation Diameter (In.): 0.17
  • Seam Type: Brazed
  • Outer Diameter (In.): 0.31
  • Outer Diameter (mm): 7.9
  • Sub Brand: Pan-Term
  • Inside Diameter (mm): 1.8
  • Inside Diameter (In.): 0.07
  • Overall Length (mm): 18
  • Overall Length (In.): 0.71
  • Overall Width (In.): 0.31
  • Overall Width (mm): 7.9
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: Bottle
  • Product Type: Ring Terminal
  • For use with: CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260

Packaging Details

  • UPC: 07498380204
  • GTIN Package: 00074983802043
  • Standard Package Volume Ft3: 0.0040
  • Standard Package Weight Pounds: 0.2000
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983802048
  • Standard Carton Volume Ft3: 0.0040
  • Standard Carton Weight Pounds: 2.0000
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.35
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 3.8
  • Std Carton Width MM: 96.52
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983802043
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Categories

Overview

UPC 07498380204
GTiN 00074983802043
Finish Tin-Plated
Width 0.31 in
Size #8
Type Ring Terminal
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Wire Size 18
Temperature Rating 302 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 1000
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 0.71 in
Barrel Length 0.28 in
Color Coding Silver
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Color Silver
Min Operating Temperature 221 degrees F
Voltage null
UNSPSC 39121409
