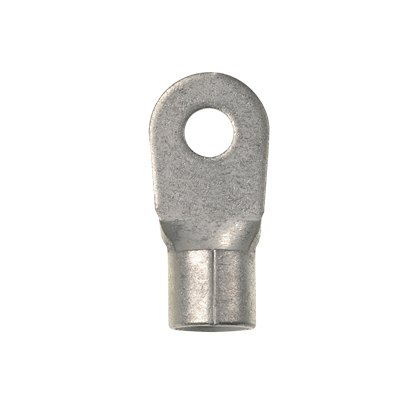

PAN P2-14R-X Ring Term,Non-Insul,2A

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Stud Hole Size (In.): 27/100
• Stud Hole Size (mm): 16.8
• Insulation Material: Non-insulated
• Maximum Copper Conductor Size (AWG STR): #2
• Maximum Copper Conductor Size (AWG): #2
• Maximum Wire Size (AWG): #2
• Maximum Copper Conductor Size (AWG SOL): #2
• Minimum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG): NA
• Wire Strip Length (mm): 11.2
• Wire Strip Length (In.): 0.44
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 2
• Base Material: Copper
• Maximum Voltage (V): 2000
• Finish/Coating: Tin-Plated
• Color Code: Metallic
• Barrel Type: Brazed Seam
• Barrel Length (mm): 14.2
• Barrel Length (In.): 0.56
• Flammability Rating: NA
• Insulation Diameter (In.): 0.48
• Insulation Diameter (mm): 12.2
• Maximum Operating Temperature (°C): 150
• Maximum Operating Temperature (°F): 302
• Maximum Wire Insulation Diameter (In.): 0.48
• Maximum Wire Insulation Diameter (mm): 12.2
• Outer Diameter (In.): 0.48
• Outer Diameter (mm): 12.2
• Inside Diameter (In.): 0.37
• Inside Diameter (mm): 9.4
• Overall Length (mm): 39.4
• Overall Length (In.): 1.55
• Overall Width (In.): 0.86
• Overall Width (mm): 21.8
• Tongue Length (In.): 1.12
• Tongue Length (mm): 28.4
• Tongue Thickness (mm): 1.5
• Tongue Thickness (In.): 0.06
• Tongue Width (In.): 0.48
• Tongue Width (mm): 12.2
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Ring Terminal
• For Use With: CT-1701, CT-2600, CD-2600-2

Packaging Details

• UPC: 07498387046
• GTIN Package: 00074983870462
• Standard Package Volume Ft3: 0.0040
• Standard Package Weight Pounds: 0.2500
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 10
• GTIN Carton: 50074983870467
• Standard Carton Volume Ft3: 0.0040
• Standard Carton Weight Pounds: 2.5000
• Std Carton Height In: 3.6
• Std Carton Height MM: 91.44
• Std Carton Length In: 9.4
• Std Carton Length MM: 91.44
• Std Carton Width In: 4.35
• Std Carton Width MM: 110.49
• Std Ctn Qty: 100
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983870462
• NLD HS Code: 8535900090000000000000
• USA HS Code: 8535908020000000000000
• USA HS Code 10digit: 8535908020
• ECCN Commodity Code: EAR99
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 10
