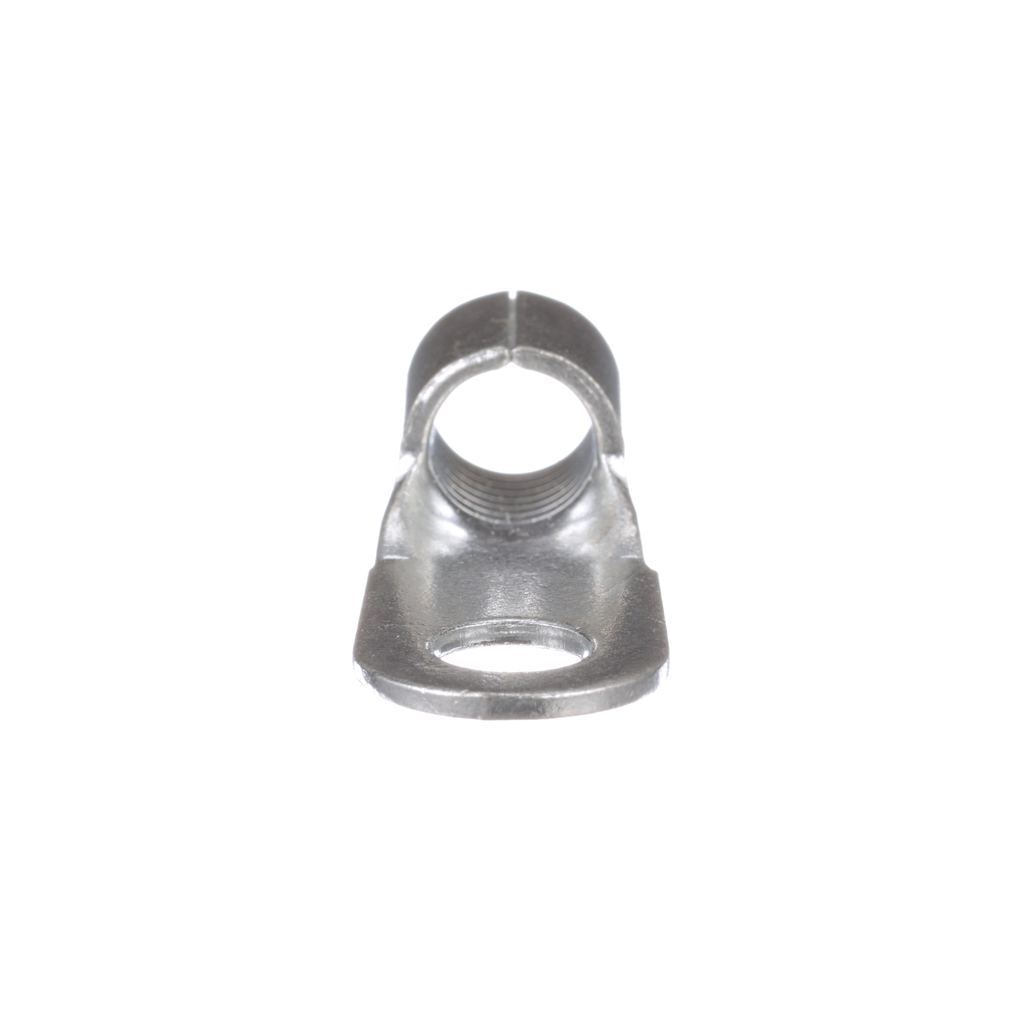

Panduit P4-14R-T Large Wire Non-Insulated Ring Terminal

Specifications

• Product Segment: IEI
• Stud Hole Size (mm): 5.1
• Stud Hole Size (In.): 1/5
• Insulation Material: Non-insulated
• Maximum Copper Conductor Size (AWG SOL): #4
• Maximum Copper Conductor Size (AWG STR): #4
• Maximum Copper Conductor Size (AWG): #4
• Maximum Wire Size (AWG): #4
• Minimum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG): NA
• Wire Strip Length (In.): 0.53
• Wire Strip Length (mm): 13.5
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 2
• Base Material: Copper
• Maximum Voltage (V): 2000
• Finish/Coating: Tin-Plated
• Color Code: Metallic
• Barrel Length (In.): 0.56
• Barrel Length (mm): 14.2
• Flammability Rating: NA
• Insulation Diameter (In.): 0.39
• Insulation Diameter (mm): 9.9
• Maximum Operating Temperature (°C): 150
• Maximum Operating Temperature (°F): 302
• Maximum Wire Insulation Diameter (mm): 9.9
• Maximum Wire Insulation Diameter (In.): 0.39
• Seam Type: Brazed
• Outer Diameter (In.): 0.39
• Outer Diameter (mm): 9.9
• Inside Diameter (mm): 7.4
• Sub Brand: Pan-Term
• Inside Diameter (In.): 0.29
• Overall Length (mm): 35.6
• Overall Length (In.): 1.4
• Overall Width (In.): 0.55
• Overall Width (mm): 14
• Tongue Length (mm): 28.4
• Tongue Length (In.): 1.12
• Tongue Thickness (In.): 0.05
• Tongue Thickness (mm): 1.3
• Tongue Width (In.): 0.55
• Tongue Width (mm): 14
• Packaging Type: Box
• Product Type: Ring Terminal
• For use with: CT-1701, CT-2600

Packaging Details

• UPC: 07498387061
• GTIN Package: 00074983870615
• Standard Package Volume Ft3: 0.5972
• Standard Package Weight Pounds: 2.9200
• Std Package Height In: 3.35
• Std Package Height MM: 85.09
• Std Package Length In: 7.1
• Std Package Length MM: 180.34
• Std Package Width In: 3.4
• Std Package Width MM: 86.36
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 200
• Standard Carton Volume Ft3: 0.5972
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 180.34
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983870615
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 200
