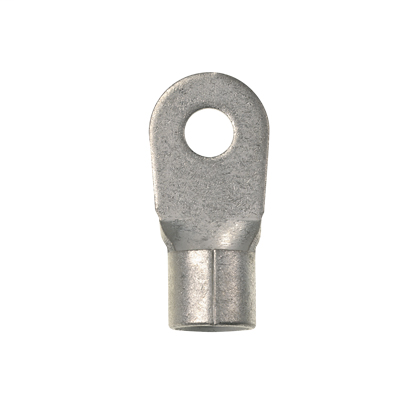

Panduit P4-38R-T 4 AWG Metallic Copper Base Large Wire Non-Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,320.44/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P4-38R-T
North Coast Part # 666045

Specifications

  • Product Segment: IEI
  • Stud Hole Size (In.): 3/8
  • Insulation Material: Non-Insulated
  • Maximum Wire Size (AWG): #4
  • Minimum Wire Size (AWG): #4
  • Wire Strip Length (mm): 12.7
  • Wire Strip Length (In.): 1/2
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Base Material: Copper
  • Maximum Voltage (V): 2000
  • Maximum Voltage (kV): 2
  • Finish/Coating: Tin-Plated
  • Barrel Type: Standard
  • Maximum Operating Temperature (°C): 150
  • Maximum Operating Temperature (°F): 302
  • Seam Type: Brazed
  • Outer Diameter (In.): 0.39
  • Outer Diameter (mm): 9.9
  • Sub Brand: Pan-Term®
  • Inside Diameter (mm): 7.4
  • Inside Diameter (In.): 0.29
  • Overall Length (In.): 1.46
  • Overall Length (mm): 37.1
  • Overall Width (mm): 17.3
  • Overall Width (In.): 0.68
  • Tongue Thickness (mm): 1.3
  • Tongue Thickness (In.): 0.05
  • Tongue Width (In.): 0.68
  • Tongue Width (mm): 17.3
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-1701, CT-2600 (CD-2600-P4)

Packaging Details

  • UPC: 07498387063
  • GTIN Package: 00074983870639
  • Standard Package Volume Ft3: 0.5972
  • Standard Package Weight Pounds: 3.0400
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.1
  • Std Package Length MM: 180.34
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 200
  • Standard Carton Volume Ft3: 0.5972
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 180.34
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983870639
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 200

Categories

Overview

UPC 07498387063
Item Long Description The P4-38R-T Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
GTiN 00074983870639
Finish Tin-Plated
Width 0.68 in
Size M10
Type Loose Piece Ring Terminal
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Wire Size 4 AWG
Temperature Rating 302 F
Pkg Qty 200
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 1.46 in
Barrel Length 0.56 in
Color Coding Metallic
Enclosure Ring shape
Sub Brand Pan-Term
Voltage 2,000 Volt
