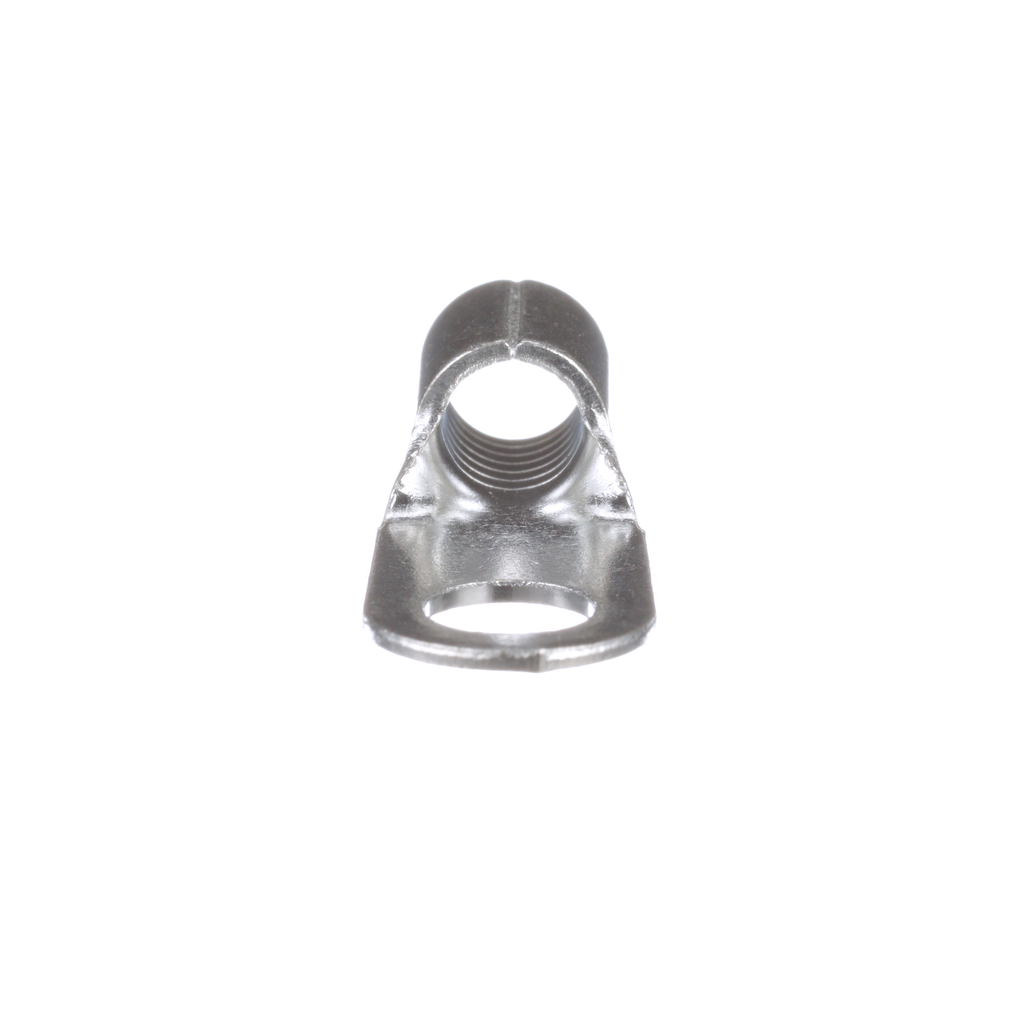

Panduit P6-14R-T Large Wire Non-Insulated Ring Terminal

Specifications

• Product Segment: IEI
• Stud Hole Size (mm): 6.8
• Stud Hole Size (In.): 27/100
• Insulation Material: Non-insulated
• Maximum Copper Conductor Size (AWG SOL): #6
• Maximum Copper Conductor Size (AWG): #6
• Maximum Wire Size (AWG): #6
• Maximum Copper Conductor Size (AWG STR): #6
• Minimum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG STR): NA
• Minimum Copper Conductor Size (AWG): NA
• Wire Strip Length (mm): 11.7
• Wire Strip Length (In.): 0.46
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Base Material: Copper
• Maximum Voltage (V): 2000
• Maximum Voltage (kV): 2
• Finish/Coating: Tin-Plated
• Color Code: Metallic
• Barrel Length (In.): 0.49
• Barrel Length (mm): 12.3
• Flammability Rating: NA
• Insulation Diameter (In.): 0.32
• Insulation Diameter (mm): 8.1
• Maximum Operating Temperature (°F): 302
• Maximum Operating Temperature (°C): 150
• Maximum Wire Insulation Diameter (mm): 8.1
• Maximum Wire Insulation Diameter (In.): 0.32
• Outer Diameter (In.): 0.32
• Seam Type: Brazed
• Outer Diameter (mm): 8.1
• Inside Diameter (mm): 5.8
• Sub Brand: Pan-Term
• Inside Diameter (In.): 0.23
• Overall Length (In.): 1.21
• Overall Length (mm): 30.7
• Overall Width (mm): 11.9
• Overall Width (In.): 0.47
• Tongue Length (In.): 0.97
• Tongue Length (mm): 24.6
• Tongue Thickness (In.): 0.05
• Tongue Thickness (mm): 1.1
• Tongue Width (In.): 0.47
• Tongue Width (mm): 11.9
• Packaging Type: Box
• Product Type: Ring Terminal
• For use with: CT-1701, CT-2600

Packaging Details

• UPC: 07498387073
• GTIN Package: 00074983870738
• Standard Package Volume Ft3: 0.4190
• Standard Package Weight Pounds: 1.8400
• Std Package Height In: 3.4
• Std Package Height MM: 86.36
• Std Package Length In: 5.15
• Std Package Length MM: 130.81
• Std Package Width In: 3.4
• Std Package Width MM: 86.36
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 200
• Standard Carton Volume Ft3: 0.4190
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 130.81
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983870738
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 200
