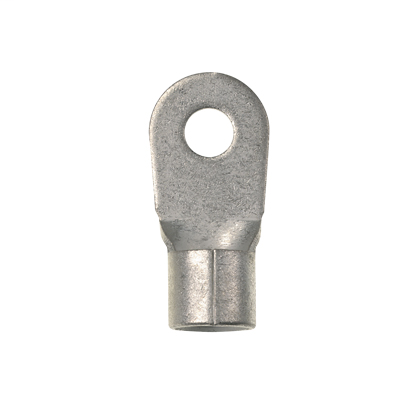

Panduit P6-38R-T Large Wire Non-Insulated Ring Terminal

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Stud Hole Size (In.): 39/100
• Stud Size: 3/8"
• Stud Hole Size (mm): 9.9
• Insulation Material: Non-insulated
• Maximum Copper Conductor Size (AWG SOL): #6
• Maximum Wire Size (AWG): #6
• Maximum Copper Conductor Size (AWG): #6
• Maximum Copper Conductor Size (AWG STR): #6
• Minimum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG): NA
• Minimum Copper Conductor Size (AWG STR): NA
• Wire Strip Length (mm): 11.7
• Wire Strip Length (In.): 0.46
• Maximum Voltage (V): 2000
• Maximum Voltage (kV): 2
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Metallic
• Barrel Length (In.): 0.51
• Barrel Length (mm): 13
• Flammability Rating: NA
• Insulation Diameter (mm): 8.1
• Insulation Diameter (In.): 0.32
• Maximum Operating Temperature (°C): 150
• Maximum Operating Temperature (°F): 302
• Maximum Wire Insulation Diameter (In.): 0.32
• Maximum Wire Insulation Diameter (mm): 8.1
• Outer Diameter (In.): 0.32
• Seam Type: Brazed
• Outer Diameter (mm): 8.1
• Sub Brand: Pan-Term
• Inside Diameter (mm): 5.8
• Inside Diameter (In.): 0.23
• Overall Length (In.): 1.33
• Overall Length (mm): 33.8
• Overall Width (In.): 0.62
• Overall Width (mm): 15.7
• Tongue Length (mm): 25.9
• Tongue Length (In.): 1.02
• Tongue Thickness (In.): 0.05
• Tongue Thickness (mm): 1.1
• Tongue Width (In.): 0.62
• Tongue Width (mm): 15.7
• Packaging Type: Box
• Product Type: Ring Terminal
• For use with: CT-1701, CT-2600

Packaging Details

• UPC: 07498387075
• GTIN Package: 00074983870752
• Standard Package Volume Ft3: 0.5972
• Standard Package Weight Pounds: 2.0400
• Std Package Height In: 3.45
• Std Package Height MM: 87.63
• Std Package Length In: 7
• Std Package Length MM: 177.8
• Std Package Width In: 3.5
• Std Package Width MM: 88.9
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 200
• Standard Carton Volume Ft3: 0.5972
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 177.8
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983870752
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 200
