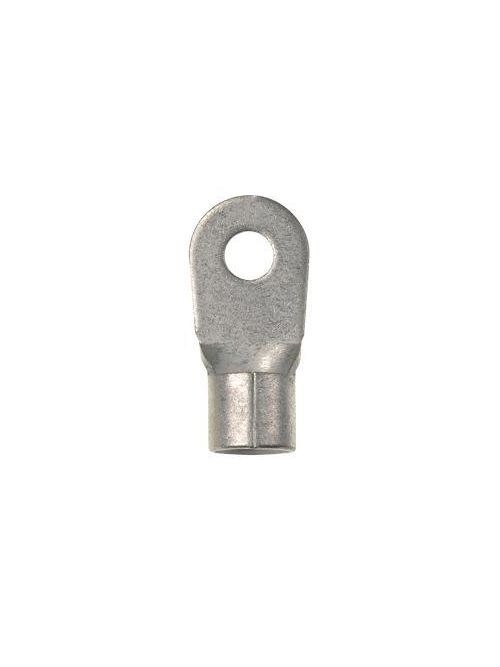

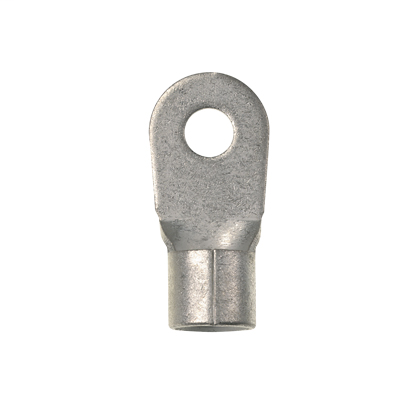

PAN P6-56R-E Ring,Non-Insul,6AWG,5/
$219.04/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 20 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P6-56R-E
North Coast Part # 601376

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Stud Hole Size (In.): 33/100
  • Stud Hole Size (mm): 8.4
  • Insulation Material: Non-insulated
  • Maximum Copper Conductor Size (AWG): #6
  • Maximum Copper Conductor Size (AWG SOL): #6
  • Maximum Copper Conductor Size (AWG STR): #6
  • Maximum Wire Size (AWG): #6
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG): NA
  • Minimum Copper Conductor Size (AWG STR): NA
  • Wire Strip Length (In.): 0.46
  • Wire Strip Length (mm): 11.7
  • Maximum Voltage (kV): 2
  • Base Material: Copper
  • Maximum Voltage (V): 2000
  • Finish/Coating: Tin-Plated
  • Color Code: Metallic
  • Barrel Type: Brazed Seam
  • Barrel Length (mm): 13
  • Barrel Length (In.): 0.51
  • Flammability Rating: NA
  • Insulation Diameter (In.): 0.32
  • Insulation Diameter (mm): 8.1
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Maximum Wire Insulation Diameter (mm): 8.1
  • Maximum Wire Insulation Diameter (In.): 0.32
  • Outer Diameter (In.): 0.32
  • Outer Diameter (mm): 8.1
  • Inside Diameter (mm): 5.8
  • Inside Diameter (In.): 0.23
  • Overall Length (In.): 1.33
  • Overall Length (mm): 33.8
  • Overall Width (mm): 15.7
  • Overall Width (In.): 0.62
  • Tongue Length (mm): 25.9
  • Tongue Length (In.): 1.02
  • Tongue Thickness (mm): 1.1
  • Tongue Thickness (In.): 0.05
  • Tongue Width (In.): 0.62
  • Tongue Width (mm): 15.7
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Ring Terminal
  • For Use With: CT-1701‡, CT-2600, CD-2600-6‡

Packaging Details

  • UPC: 07498387068
  • GTIN Package: 00074983870684
  • Standard Package Volume Ft3: 0.0040
  • Standard Package Weight Pounds: 0.3460
  • Std Package Height In: 1.8
  • Std Package Height MM: 45.72
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.85
  • Std Package Width MM: 46.99
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 20
  • GTIN Carton: 50074983870689
  • Standard Carton Volume Ft3: 0.0040
  • Standard Carton Weight Pounds: 3.4600
  • Std Carton Height In: 3.65
  • Std Carton Height MM: 92.71
  • Std Carton Length In: 9.55
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 3.85
  • Std Carton Width MM: 97.79
  • Std Ctn Qty: 200
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983870684
  • NLD HS Code: 8535900090000000000000
  • USA HS Code: 8535908020000000000000
  • USA HS Code 10digit: 8535908020
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 20

Overview

UPC 07498387068
GTiN 00074983870684
Finish Tin-Plated
Width 0.62 in
Size 5/16"
Type Loose Piece Ring Terminal
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Wire Size 6 AWG
Temperature Rating 302 F
Pkg Qty 20
Family Brand Name Panduit
Carton Qty 200
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 1.33 in
Barrel Length 0.51 in
Color Coding Metallic
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
