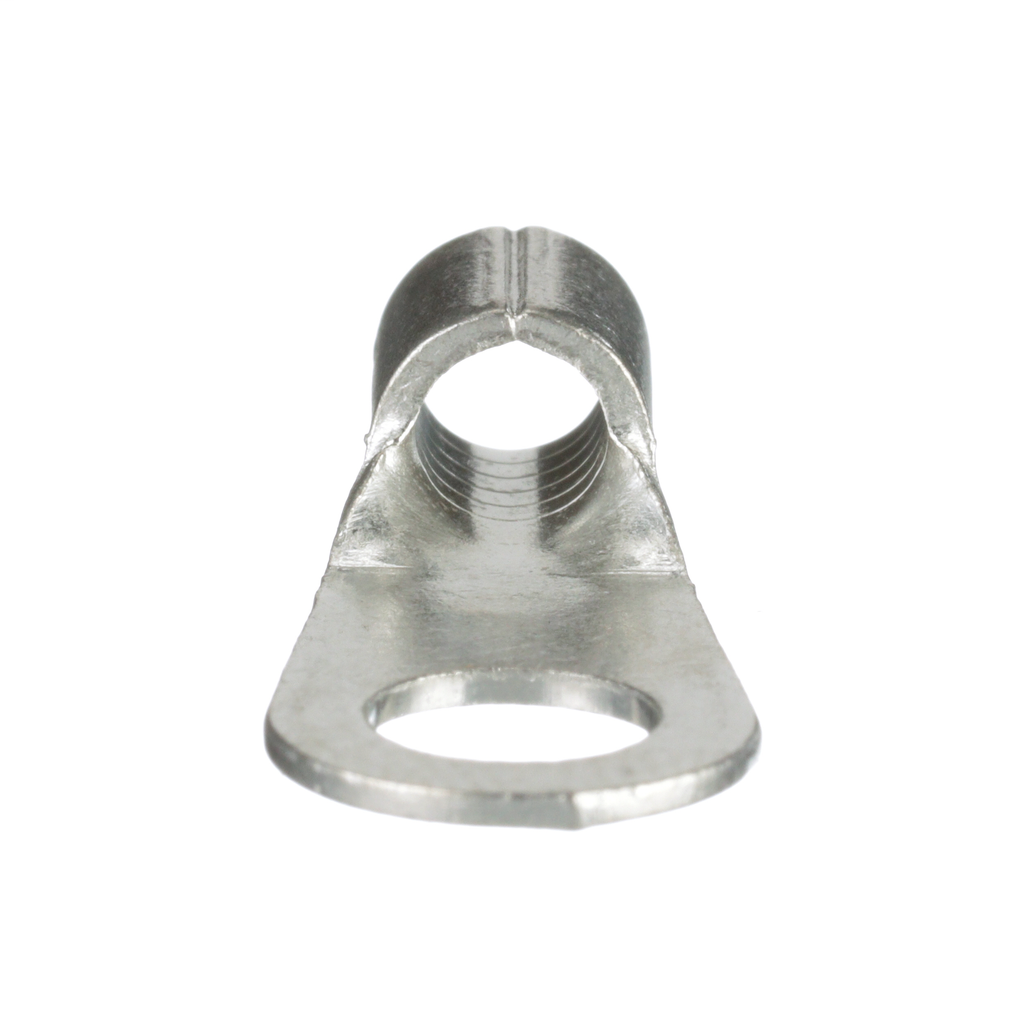

Panduit P8-14R-Q Large Wire Non-Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$170.37/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # P8-14R-Q
North Coast Part # 604724

Specifications

  • Product Segment: IEI
  • Stud Hole Size (In.): 1/4
  • Insulation Material: Non-Insulated
  • Minimum Wire Size (AWG): #8
  • Maximum Wire Size (AWG): #8
  • Wire Strip Length (mm): 9.5
  • Wire Strip Length (In.): 3/8
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (V): 2000
  • Maximum Voltage (kV): 2
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Barrel Type: Standard
  • Maximum Operating Temperature (°F): 302
  • Maximum Operating Temperature (°C): 150
  • Outer Diameter (In.): 0.27
  • Seam Type: Brazed
  • Outer Diameter (mm): 6.9
  • Sub Brand: Pan-Term®
  • Inside Diameter (In.): 0.19
  • Inside Diameter (mm): 4.8
  • Overall Length (In.): 1.14
  • Overall Length (mm): 29
  • Overall Width (In.): 0.47
  • Overall Width (mm): 11.9
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1
  • Tongue Width (In.): 0.47
  • Tongue Width (mm): 11.9
  • Packaging Type: Bottle
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-1701, CT-2600 (CD-2600-P8)

Packaging Details

  • UPC: 07498387079
  • GTIN Package: 00074983870790
  • Standard Package Volume Ft3: 0.0040
  • Standard Package Weight Pounds: 0.2000
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • GTIN Carton: 50074983870795
  • Standard Carton Volume Ft3: 0.0040
  • Standard Carton Weight Pounds: 2.0000
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.7
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 3.95
  • Std Carton Width MM: 100.33
  • Std Ctn Qty: 250
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983870790
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25

Categories

Overview

UPC 07498387079
Item Long Description The P8-14R-Q Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
GTiN 00074983870790
Finish Tin-Plated
Width 0.47 in
Size M6
Type Loose Piece Ring Terminal
Barrel Type Brazed Seam
Material Copper
Country of Origin MX
Wire Size 8 AWG
Temperature Rating 302 F
Pkg Qty 25
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 302 degrees F
Overall Length 1.14 in
Barrel Length 0.46 in
Color Coding Metallic
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 2,000 Volt
