PAN PBMS-H25-M Panduit PMBS-H25-M P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$269.85/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PBMS-H25-M
North Coast Part # 666048

Specifications

  • Product Segment: IEI
  • Product Type: Cable Tie Mount
  • Application: Push Button Mounts for Use where Both Sides of the Panel are Accessible
  • Color: Natural
  • Environment: Indoor
  • Material: Nylon 6.6
  • Maximum Compatible Panel Thickness (mm): 3.3
  • Maximum Compatible Panel Thickness (In.): 0.13
  • Maximum Operating Temperature (°C): 115
  • Minimum Operating Temperature (°C): -40
  • Mount Method: Push Barb
  • Overall Height (In.): 0.4
  • Overall Height (mm): 10.2
  • Overall Length (mm): 10.7
  • Overall Length (In.): 0.42
  • Overall Width (In.): 0.16
  • Overall Width (mm): 4.1
  • Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant

Packaging Details

  • UPC: 07498358945
  • GTIN Package: 00074983589456
  • Standard Package Volume Ft3: 0.0539
  • Standard Package Weight Pounds: 0.7000
  • Std Package Height In: 1.2
  • Std Package Height MM: 30.48
  • Std Package Length In: 8.85
  • Std Package Length MM: 224.79
  • Std Package Width In: 8.65
  • Std Package Width MM: 219.71
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983589451
  • Standard Carton Volume Ft3: 0.0539
  • Standard Carton Weight Pounds: 3.5000
  • Std Carton Height In: 4.55
  • Std Carton Height MM: 115.57
  • Std Carton Length In: 10.4
  • Std Carton Length MM: 224.79
  • Std Carton Width In: 10.25
  • Std Carton Width MM: 260.35
  • Std Ctn Qty: 5000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983589456
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 800,000
  • Pallet Volume: 43.121272
  • Pallet Weight: 560.0000

Overview

UPC 07498358945

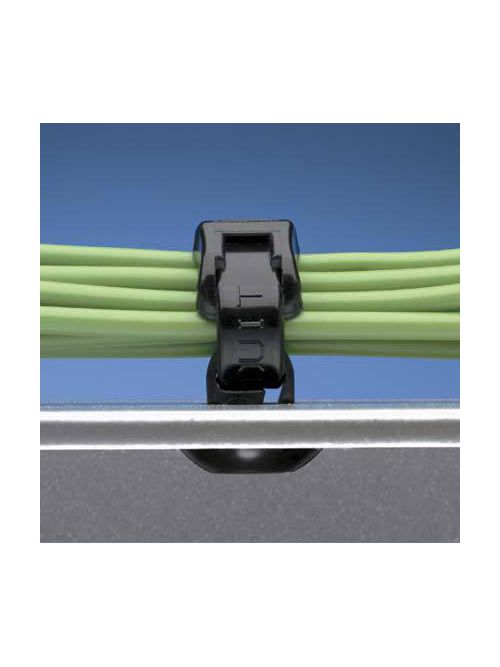

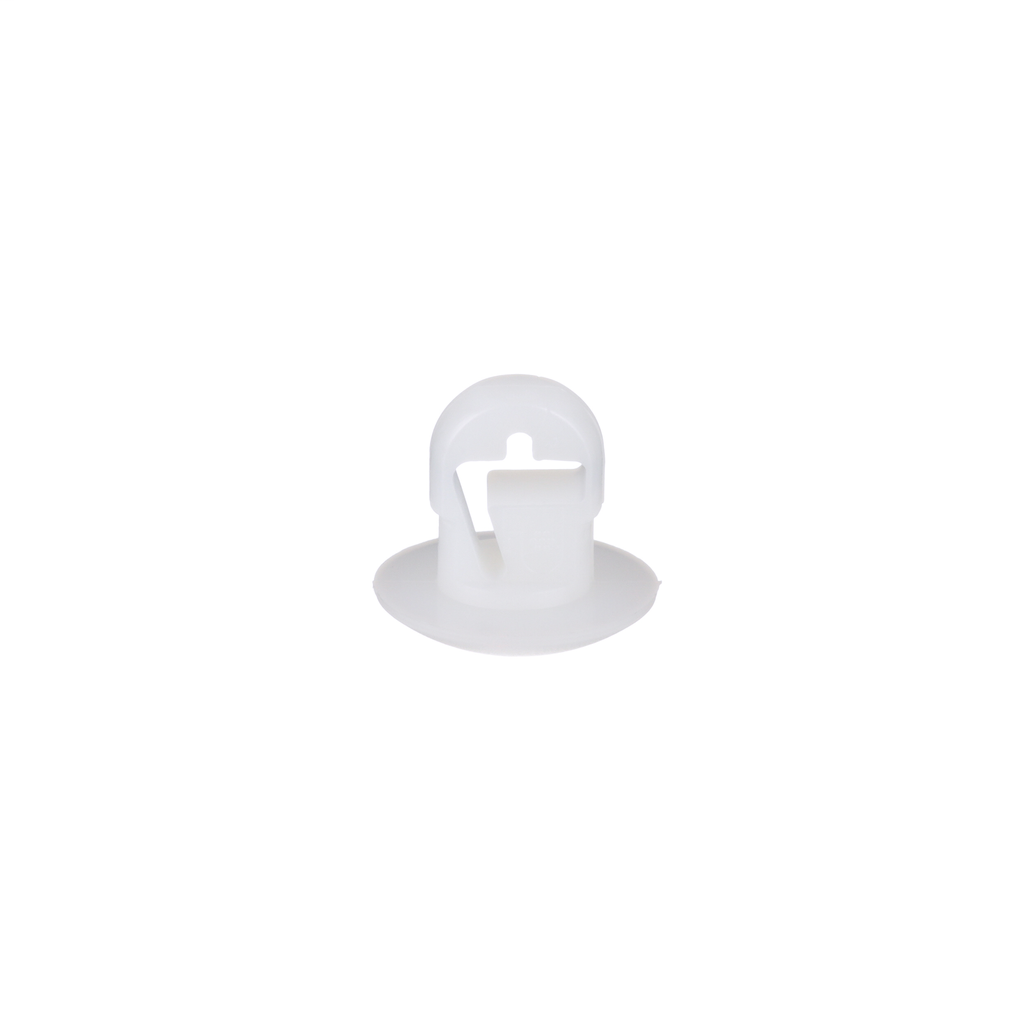

Item Long Description Panduit PMBS-H25-M push button cable tie mount requires no adhesive or additional mounting hardware. Designed for use where both sides of the panel are accessible. For maximum panel thickness of .125" (3.2mm) and for hole size .250" (6.4mm). Use with Miniature, Intermediate and Standard cross section cable ties. For indoor use. Made of Nylon 6.6, have a flammability rating of V-2, are natural in color, and come in packages of 1000.
GTiN 00074983589456
Width 0.16 in
Color Natural
Operating Temperature -76F (-60C) - 185F (85C)
Type Cable Tie Mount
Material Nylon
Applications Indoor
Height 10.2 mm
Country of Origin US
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 115 C
Overall Length 0.42 in
Min Operating Temperature -40 C
CA Prop65 Warning No
Mounting Type Push Barb
