PAN PC100-H25D-T0 Panduit PC100-H25
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$620.92/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 200 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PC100-H25D-T0
North Coast Part # 933451

Specifications

  • Product Segment: IEI

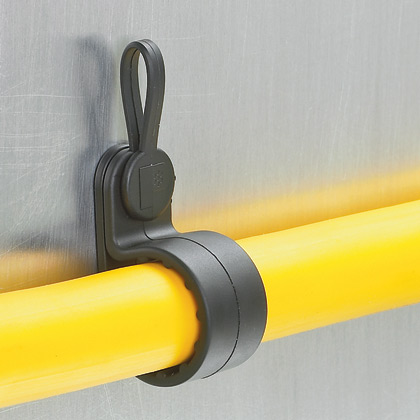

  • Product Type: Fixed Diameter Clamp
  • Application: For securing wires, cables, and hydraulic hoses for heavy duty applicatons including light vehicles, heavy trucks, and specialty vehicles.
  • Color: Black
  • Environment: Outdoor
  • Material: Weather Resistant Nylon 6.6
  • Maximum Bundle Diameter (In.): 1
  • Maximum Bundle Diameter (mm): 25.4
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Mount Method: Push Barb
  • Mounting Hole Diameter (mm): 7.1
  • Mounting Hole Diameter (In.): 0.28
  • Overall Height (mm): 30.5
  • Overall Height (In.): 1.2
  • Overall Length (mm): 24.3
  • Overall Length (In.): 0.96
  • Overall Width (In.): 0.62
  • Overall Width (mm): 15.7
  • Resistance Properties: Weather Resistant
  • Standards Met: Flammability: Meets UL94B HB, passes FMVSS 302; Chemical resistance @ 21°C (70°F): Excellent resistance to common transportation fluids including: ethyl and methyl alcohols, ethylene glycol, diesel fuel, gasoline, jet fuel, hydraulic fluid, transmission fluids and 10% Sodium chloride solution and RoHS Compliant.
  • Sub Brand: Pan-Clamp™

Packaging Details

  • UPC: 07498383893
  • GTIN Package: 00074983838936
  • Standard Package Volume Ft3: 0.4550
  • Standard Package Weight Pounds: 2.7900
  • Std Package Height In: 4.7
  • Std Package Height MM: 119.38
  • Std Package Length In: 15.1
  • Std Package Length MM: 383.54
  • Std Package Width In: 13.25
  • Std Package Width MM: 336.55
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 200
  • GTIN Carton: 50074983838931
  • Standard Carton Volume Ft3: 0.4550
  • Standard Carton Weight Pounds: 13.9500
  • Std Carton Height In: 16
  • Std Carton Height MM: 406.4
  • Std Carton Length In: 23.2
  • Std Carton Length MM: 383.54
  • Std Carton Width In: 10.75
  • Std Carton Width MM: 273.05
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983838936
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498383893
GTiN 00074983838936
Width 0.62 in
Color Black
Type Fixed Diameter Clamp
Material Nylon
Applications Outdoor
Country of Origin US
Cable Size 25.4 mm
Pkg Qty 200
Family Brand Name Panduit
Carton Qty 1000
Max Operating Temperature 185 degrees F
Min Operating Temperature -76 degrees F
Sub Brand Pan-Clamp
CA Prop65 Warning No
Mounting Type Push Barb
