PAN PCSB250-3-6Y Panduit PCSB250-3-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$4,796.72/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PCSB250-3-6Y
North Coast Part # 598869

Specifications

  • Product Segment: IEI
  • Application: Aluminum or Copper Code Conductors
  • Note: PCSB250-3-6Y replaces PCSB250-3-6
  • Product Type: Multi-Tap Mechanical Connectors, Double Sided
  • Base Material: Aluminum
  • Minimum Copper Conductor Size (AWG STR): 10
  • Minimum Aluminum Conductor Size (AWG): 10
  • Maximum Copper Conductor Size (kcmil): 250
  • Maximum Aluminum Conductor Size (kcmil): 250
  • Number of Ports: 3
  • Overall Height (mm): 54.1
  • Overall Height (In.): 2.13
  • Overall Length (mm): 75.4
  • Overall Length (In.): 2.97
  • Overall Width (mm): 66.8
  • Overall Width (In.): 2.63
  • Insulation Material: Clear PVC
  • Finish/Coating: Tin-Plated
  • Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
  • UL Temperature Rating (°C): 90
  • Maximum Voltage (V): 600
  • Hex Size (mm): 7.9
  • Hex Size (In.): 5/16
  • Sub Brand: Pan-Lug™
  • Wire Strip Length (mm): 22.3
  • Wire Strip Length (In.): 0.88

Packaging Details

  • UPC: 07498359661
  • GTIN Package: 00074983596614
  • Standard Package Volume Ft3: 0.1098
  • Standard Package Weight Pounds: 2.9640
  • Std Package Height In: 4.4
  • Std Package Height MM: 111.76
  • Std Package Length In: 10.65
  • Std Package Length MM: 270.51
  • Std Package Width In: 4.25
  • Std Package Width MM: 107.95
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 6
  • Standard Carton Volume Ft3: 0.1098
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 270.51
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: US
  • RoHS Compliant: Compliant
  • EAN: 00074983596614
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: Y
  • Restricted Use of Hazardous Substances: Y
  • Hazardous Material Flag: N
  • Min Order Qty: 1
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498359661

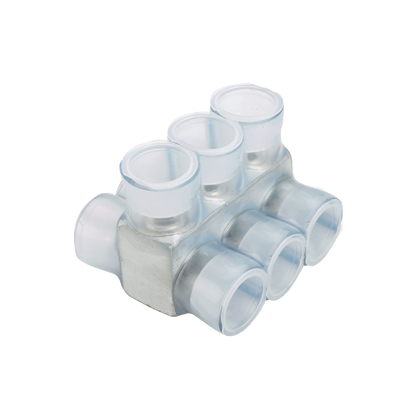

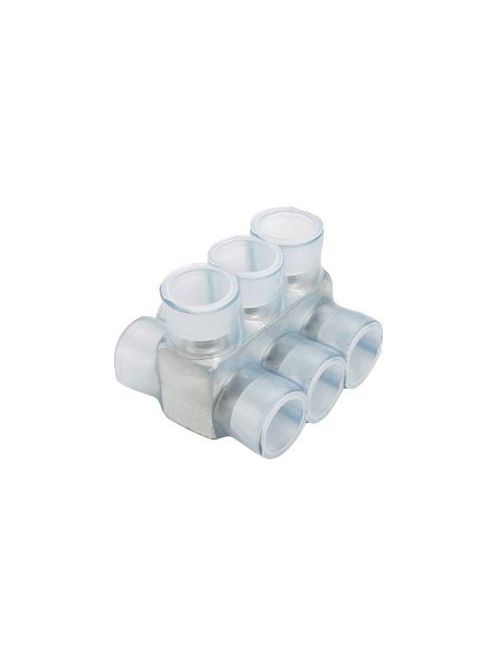

Item Long Description The PCSB250-3-6Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
GTiN 00074983596614
Width 2.63 in
Height 2.1 in
Country of Origin US
Pkg Qty 6
Family Brand Name Panduit
Overall Length 2.97 in
CA Prop65 Warning No
Type Multi-Tap Mechanical Connectors, Double Sided
