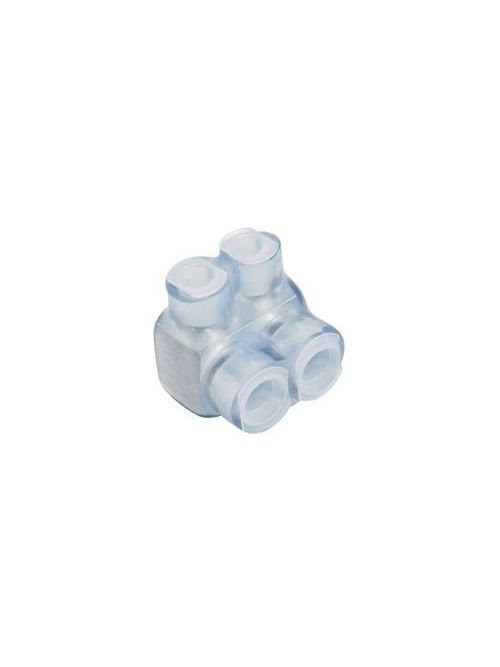

PAN PCSB4-3S-12Y Panduit PCSB4-3S-1

Specifications

• Product Segment: IEI
• Application: Aluminum or Copper Code Conductors
• Note: PCSB4-3S-12Y replaces PCSB4-3S-12
• Product Type: Multi-Tap Mechanical Connectors, Single Sided
• Base Material: Aluminum
• Minimum Aluminum Conductor Size (AWG): 14
• Minimum Copper Conductor Size (AWG STR): 14
• Minimum Copper Conductor Size (AWG SOL): 14
• Maximum Copper Conductor Size (AWG STR): 4
• Maximum Copper Conductor Size (AWG): 10
• Maximum Copper Conductor Size (AWG SOL): 10
• Number of Ports: 3
• Overall Height (mm): 31.7
• Overall Height (In.): 1.25
• Overall Length (In.): 1.76
• Overall Length (mm): 44.7
• Overall Width (mm): 31.8
• Overall Width (In.): 1.25
• Insulation Material: Clear PVC
• Finish/Coating: Tin-Plated
• Standards Met: UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
• UL Temperature Rating (°C): 90
• Maximum Voltage (V): 600
• Hex Size (In.): 1/8
• Hex Size (mm): 3.17
• Sub Brand: Pan-Lug™
• Wire Strip Length (In.): 0.56
• Wire Strip Length (mm): 14.2

Packaging Details

• UPC: 07498359757
• GTIN Package: 00074983597574
• Standard Package Volume Ft3: 0.0492
• Standard Package Weight Pounds: 0.6096
• Std Package Height In: 3.35
• Std Package Height MM: 85.09
• Std Package Length In: 7.15
• Std Package Length MM: 181.61
• Std Package Width In: 3.35
• Std Package Width MM: 85.09
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 12
• Standard Carton Volume Ft3: 0.0492
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 181.61
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: US
• RoHS Compliant: Compliant
• EAN: 00074983597574
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: Y
• Restricted Use of Hazardous Substances: Y
• Hazardous Material Flag: N
• Min Order Qty: 1
