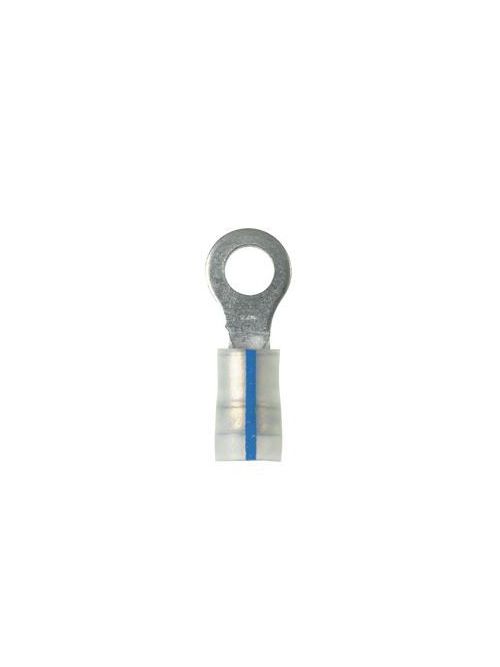

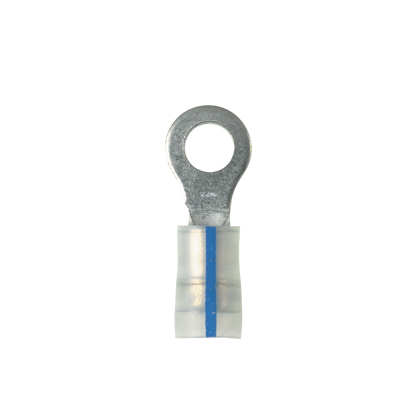

PAN PK14-10R-C Ring,Kynar Insul,16-

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Stud Size: #10
• Stud Hole Size (mm): 5.1
• Stud Hole Size (In.): 1/5
• Insulation Material: Kynar
• Maximum Copper Conductor Size (AWG): #14
• Minimum Wire Size (AWG): #18
• Maximum Wire Size (AWG): #14
• Maximum Copper Conductor Size (AWG STR): #14
• Maximum Copper Conductor Size (AWG SOL): #14
• Minimum Copper Conductor Size (AWG STR): #18
• Minimum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG): #18
• Wire Strip Length (In.): 0.25
• Wire Strip Length (mm): 6.4
• Standards Met: UL Listed 587H E52164
• Base Material: Copper
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Color Code: Blue
• Barrel Type: Grip Sleeve
• Barrel Length (In.): 0.36
• Barrel Length (mm): 9
• Flammability Rating: UL 94 V-0
• Insulation Diameter (mm): 4.1
• Insulation Diameter (In.): 0.16
• Maximum Operating Temperature (°F): 302
• Maximum Operating Temperature (°C): 150
• Maximum Wire Insulation Diameter (In.): 0.16
• Maximum Wire Insulation Diameter (mm): 4.1
• Sub Brand: Pan-Term
• Inside Diameter (mm): 4.1
• Inside Diameter (In.): 0.16
• Overall Length (mm): 22.1
• Overall Length (In.): 0.87
• Overall Width (In.): 0.31
• Overall Width (mm): 7.9
• Tongue Length (mm): 18
• Tongue Length (In.): 0.71
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Tongue Width (In.): 0.31
• Tongue Width (mm): 7.9
• Packaging Type: Bottle
• Product Type: Ring Terminal
• For Use With: CT-100A, CT-600- CT-1550, CT-1551, CT-2500

Packaging Details

• UPC: 07498382863
• GTIN Package: 00074983828630
• Standard Package Volume Ft3: 0.0074
• Standard Package Weight Pounds: 0.2900
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983828635
• Standard Carton Volume Ft3: 0.0074
• Standard Carton Weight Pounds: 1.4500
• Std Carton Height In: 3.65
• Std Carton Height MM: 92.71
• Std Carton Length In: 9.3
• Std Carton Length MM: 91.44
• Std Carton Width In: 2.1
• Std Carton Width MM: 53.34
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983828630
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
