Manufacturer Panduit
Mfg Catalog # PLB3S-M30
North Coast Part # 419801

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Black
  • Sub Brand: Pan-Ty®
  • Environment: Indoor
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
  • Material: Heat Stabilized Nylon 6.6
  • Resistance Properties: Heat Resistant
  • Maximum Bundle Diameter (mm): 76
  • Maximum Bundle Diameter (In.): 3
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 11.8
  • Overall Length (mm): 300
  • Body Width (In.): 0.19
  • Body Width (mm): 4.8
  • Body Thickness (In.): 0.052
  • Body Thickness (mm): 1.3
  • Standards Met: UL Recognized (File #E56854), RoHS Complaint

Packaging Details

  • UPC: 07498355685
  • GTIN Package: 00074983556854
  • Standard Package Volume Ft3: 0.3411
  • Standard Package Weight Pounds: 5.0000
  • Std Package Height In: 4.7
  • Std Package Height MM: 119.38
  • Std Package Length In: 15.85
  • Std Package Length MM: 402.59
  • Std Package Width In: 13.65
  • Std Package Width MM: 346.71
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983556859
  • Standard Carton Volume Ft3: 0.3411
  • Standard Carton Weight Pounds: 50.0000
  • Std Carton Height In: 18.41
  • Std Carton Height MM: 467.614
  • Std Carton Length In: 21.96
  • Std Carton Length MM: 402.59
  • Std Carton Width In: 14.58
  • Std Carton Width MM: 370.332
  • Std Ctn Qty: 10000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG
  • RoHS Compliant: Compliant
  • EAN: 00074983556854
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000

Categories

Overview

UPC 07498355685

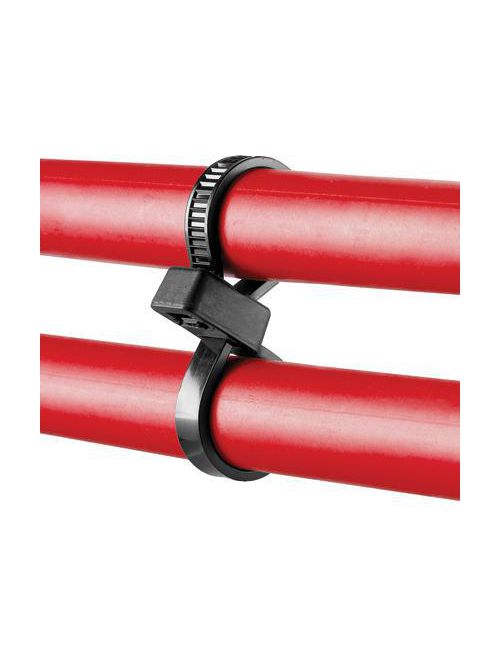

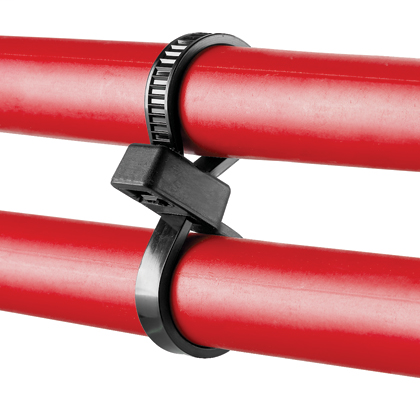

Item Long Description Panduit PLB3S-M30 Double Loop Cable Tie is a fast and economical method to secure and separate two bundles. They reduce your part number inventory because a single part covers multiple bundle sizes. These ties are for high temperature indoor applications. Standard cross section and 11.8 (300mm) length. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 1000.
GTiN 00074983556854
Width 8.4 mm
Color Black
Type Cable Ties
Thickness 15.7 mm
Material Nylon
Applications High Temperature
Country of Origin SG
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 11.8 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 lb
Bundle Diameter 76.2 mm
Sub Brand Pan-Steel
CA Prop65 Warning No
