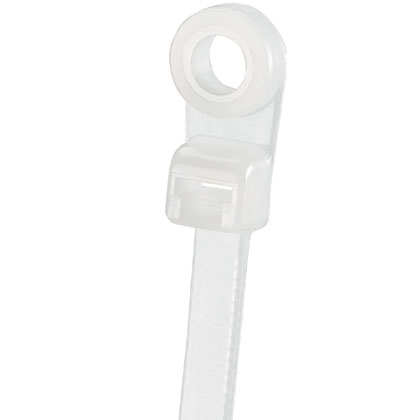

PAN PLC1M-S4-C ClampTie,Min,4.3in,#

Specifications

• Product Segment: IEI
• Product Type: Locking Clamp Ties
• Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• Color: Natural
• Environment: Indoor
• For use with: GTS-E, GS2B-E
• Material: Nylon 6.6
• Standards Met: UL Listed; UL Recognized; UL 62275 Compliant (Type 2, 21); CE Compliant; CSA Certified
• Screw Size: #4 (M2.5)
• Sub Brand: Pan-Ty®
• Minimum Bundle Diameter (In.): 0.06
• Maximum Bundle Diameter (In.): 0.75
• Minimum Bundle Diameter (mm): 1.5
• Maximum Bundle Diameter (mm): 19
• Minimum Installation Temperature (°C): -20
• Minimum Installation Temperature (°F): -4
• Maximum Installation Temperature (°F): 32
• Maximum Operating Temperature (°C): 85
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Maximum Operating Temperature (°F): 185
• Mounting Hole Width (mm): 6.1
• Mounting Hole Diameter (In.): 0.122
• Mounting Hole Diameter (mm): 3.1
• Mounting Hole Width (In.): 0.239
• Overall Length (mm): 109.2
• Overall Length (In.): 4.3
• Body Width (In.): 0.1
• Body Width (mm): 2.5
• Body Thickness (In.): 0.045
• Body Thickness (mm): 1.1
• Resistance Properties: NA
• Minimum Loop Tensile Strength (lb): 18
• Minimum Loop Tensile Strength (N): 80

Packaging Details

• UPC: 07498355038
• GTIN Package: 00074983550388
• Standard Package Volume Ft3: 0.0237
• Standard Package Weight Pounds: 0.1500
• Std Package Height In: 1.05
• Std Package Height MM: 26.67
• Std Package Length In: 5.9
• Std Package Length MM: 149.86
• Std Package Width In: 5.6
• Std Package Width MM: 142.24
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983550383
• Standard Carton Volume Ft3: 0.0237
• Standard Carton Weight Pounds: 1.5000
• Std Carton Height In: 5.65
• Std Carton Height MM: 143.51
• Std Carton Length In: 10.2
• Std Carton Length MM: 149.86
• Std Carton Width In: 6.55
• Std Carton Width MM: 166.37
• Std Ctn Qty: 1000
• Min. Order UOM: Piece
• Country of Origin 2Digit: SG
• RoHS Compliant: Compliant
• EAN: 00074983550388
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 100
