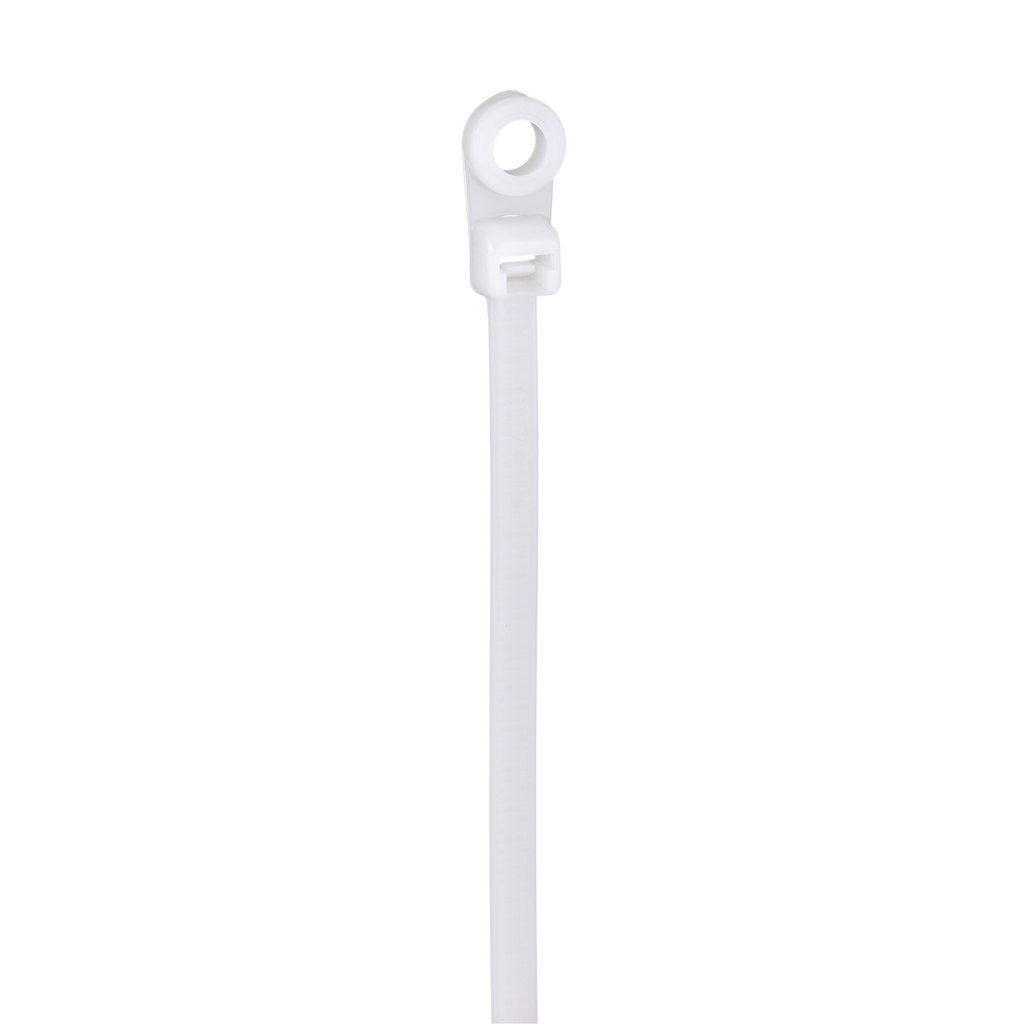

Panduit PLC2S-S10-M 7.9 Inch 201 mm #10 Screw Clamp Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$218.77/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLC2S-S10-M
North Coast Part # 597338

Specifications

  • Product Segment: IEI
  • Product Type: Locking Clamp Ties
  • Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
  • Color: Natural
  • Environment: Indoor
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
  • Material: Nylon 6.6
  • Standards Met: CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Recognized; UL Listed
  • Screw Size: #10 (M5)
  • Minimum Bundle Diameter (In.): 0.06
  • Maximum Bundle Diameter (In.): 1.84
  • Sub Brand: Pan-Ty®
  • Minimum Bundle Diameter (mm): 1.5
  • Maximum Bundle Diameter (mm): 47
  • Minimum Installation Temperature (°C): -20
  • Maximum Installation Temperature (°F): 32
  • Minimum Installation Temperature (°F): -4
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -76
  • Mounting Hole Diameter (mm): 5.1
  • Mounting Hole Width (mm): 9.5
  • Mounting Hole Width (In.): 0.373
  • Mounting Hole Diameter (In.): 0.2
  • Overall Length (mm): 200.7
  • Overall Length (In.): 7.9
  • Body Width (mm): 4.8
  • Body Width (In.): 0.19
  • Body Thickness (In.): 0.047
  • Body Thickness (mm): 1.2
  • Resistance Properties: NA
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50

Packaging Details

  • UPC: 07498355101
  • GTIN Package: 00074983551019
  • Standard Package Volume Ft3: 0.2677
  • Standard Package Weight Pounds: 3.5000
  • Std Package Height In: 4.55
  • Std Package Height MM: 115.57
  • Std Package Length In: 12.8
  • Std Package Length MM: 325.12
  • Std Package Width In: 11.75
  • Std Package Width MM: 298.45
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983551014
  • Standard Carton Volume Ft3: 0.2677
  • Standard Carton Weight Pounds: 35.0000
  • Std Carton Height In: 13.9
  • Std Carton Height MM: 353.06
  • Std Carton Length In: 22.3
  • Std Carton Length MM: 325.12
  • Std Carton Width In: 15.25
  • Std Carton Width MM: 387.35
  • Std Ctn Qty: 10000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG
  • RoHS Compliant: Compliant
  • EAN: 00074983551019
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000

Overview

UPC 07498355101
Item Long Description Panduit PLC2S-S10-M Locking Clamp Cable Ties are used to secure cable bundles to another surface such as a control panel, communication rack, wall or ceiling. The cable tie design allows for bundling before or after screwing clamp in place, for use with #10 (M5) screw. Standard cross section, 7.9" (201mm) length. Made of Nylon 6.6, are natural in color and come in packages of 1000.
GTiN 00074983551019
Width 0.19 in
Color Natural
Type Locking Clamp Ties
Thickness 0.05 IN
Material Nylon
Applications General
Country of Origin SG
Pkg Qty 1000
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 7.9 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 lb
Bundle Diameter 1.84 IN
Sub Brand Pan-Ty
CA Prop65 Warning No
