PAN PLC2S-S6-C ClampTie,Std,7.9in,#
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$31.93/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLC2S-S6-C
North Coast Part # 677091

Specifications

  • UNSPSC: 39121703
  • Product Segment: IEI
  • Product Type: Locking Clamp Ties
  • Application: General
  • Color: Natural
  • Environment: Plenum
  • Material: Nylon 6.6
  • Standards Met: CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL Recognized
  • Screw Size: #6 (M3)
  • Sub Brand: Pan-Ty®
  • Minimum Bundle Diameter (In.): 0.06
  • Maximum Bundle Diameter (In.): 1.84
  • Maximum Bundle Diameter (mm): 47
  • Minimum Bundle Diameter (mm): 1.5
  • Maximum Installation Temperature (°F): 32
  • Minimum Operating Temperature (°C): -60
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -76
  • Mounting Hole Width (mm): 9.5
  • Mounting Hole Width (In.): 0.37
  • Overall Length (In.): 7.9
  • Overall Length (mm): 200.7
  • Body Width (mm): 4.8
  • Body Width (In.): 0.19
  • Body Thickness (mm): 1.2
  • Body Thickness (In.): 0.047
  • Resistance Properties: NA
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Loop Tensile Strength (N): 222

Packaging Details

  • UPC: 07498355078
  • GTIN Package: 00074983550784
  • Standard Package Volume Ft3: 0.0321
  • Standard Package Weight Pounds: 0.5000
  • Std Package Height In: 1.55
  • Std Package Height MM: 39.37
  • Std Package Length In: 9.95
  • Std Package Length MM: 252.73
  • Std Package Width In: 5.3
  • Std Package Width MM: 134.62
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983550789
  • Standard Carton Volume Ft3: 0.0321
  • Standard Carton Weight Pounds: 5.0000
  • Std Carton Height In: 5.9
  • Std Carton Height MM: 149.86
  • Std Carton Length In: 10.6
  • Std Carton Length MM: 252.73
  • Std Carton Width In: 8.3
  • Std Carton Width MM: 210.82
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG
  • RoHS Compliant: Compliant
  • EAN: 00074983550784
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 140,000
  • Pallet Volume: 44.900544
  • Pallet Weight: 700.0000

Overview

UPC 07498355078

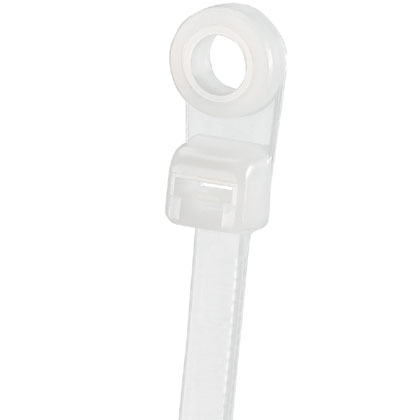

Item Long Description Pan-Ty locking clamp tie, standard cross section, #6 (M3) screw, 7.9 (201mm) length, nylon 6.6, natural, standard package.
GTiN 00074983550784
Width 4.8 mm
Color Natural
Type Locking Clamp Ties
Thickness 1.2 mm
Material Nylon
Applications General
Country of Origin SG
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 7.9 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 lb
Bundle Diameter 47 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
UNSPSC 39121703
