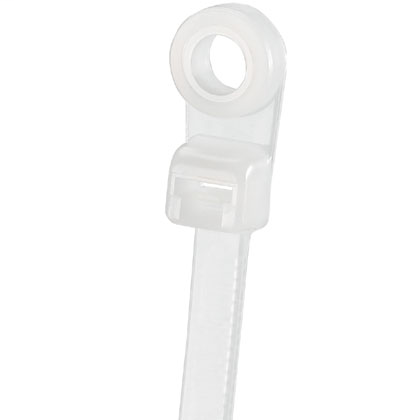

Panduit PLC3S-S10-C 12.0 Inch 305 mm #10 Screw Clamp Tie
$72.44/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLC3S-S10-C
North Coast Part # 606475

Specifications

  • Product Segment: IEI
  • Product Type: Locking Clamp Ties
  • Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
  • Color: Natural
  • Environment: Indoor
  • For use with: GTS-E, GS2B-E, GTH-E, GS4H-E
  • Material: Nylon 6.6
  • Standards Met: CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL Recognized
  • Screw Size: #10 (M5)
  • Minimum Bundle Diameter (In.): 0.06
  • Maximum Bundle Diameter (In.): 3
  • Sub Brand: Pan-Ty®
  • Minimum Bundle Diameter (mm): 1.5
  • Maximum Bundle Diameter (mm): 76
  • Minimum Installation Temperature (°C): -20
  • Maximum Installation Temperature (°F): 32
  • Minimum Installation Temperature (°F): -4
  • Minimum Operating Temperature (°C): -60
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°F): 185
  • Mounting Hole Diameter (In.): 0.2
  • Mounting Hole Width (mm): 9.5
  • Mounting Hole Width (In.): 0.373
  • Mounting Hole Diameter (mm): 5.1
  • Overall Length (mm): 304.8
  • Overall Length (In.): 12
  • Body Width (mm): 4.8
  • Body Width (In.): 0.19
  • Body Thickness (In.): 0.052
  • Body Thickness (mm): 1.3
  • Resistance Properties: NA
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50

Packaging Details

  • UPC: 07498355580
  • GTIN Package: 00074983555802
  • Standard Package Volume Ft3: 0.0502
  • Standard Package Weight Pounds: 0.6000
  • Std Package Height In: 1.65
  • Std Package Height MM: 41.91
  • Std Package Length In: 13.9
  • Std Package Length MM: 353.06
  • Std Package Width In: 5.7
  • Std Package Width MM: 144.78
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983555807
  • Standard Carton Volume Ft3: 0.0502
  • Standard Carton Weight Pounds: 6.0000
  • Std Carton Height In: 6.05
  • Std Carton Height MM: 153.67
  • Std Carton Length In: 16.65
  • Std Carton Length MM: 353.06
  • Std Carton Width In: 8.85
  • Std Carton Width MM: 224.79
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG
  • RoHS Compliant: Compliant
  • EAN: 00074983555802
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Categories

Overview

UPC 07498355580
GTiN 00074983555802
Width 4.8 mm
Color Natural
Type Locking Clamp Ties
Thickness 1.3 mm
Material Nylon
Applications General
Country of Origin SG
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 1000
Max Operating Temperature 185 degrees F
Overall Length 12 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 lb
Bundle Diameter 76 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
