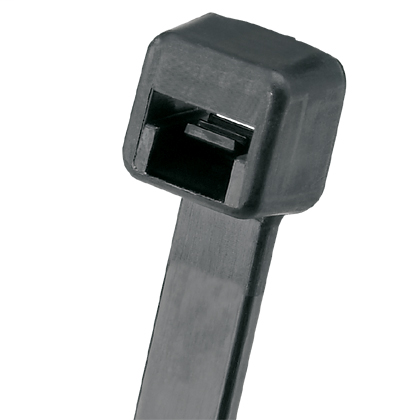

PAN PLT.6SM-C0 Panduit PLT.6SM-C0 L

Specifications

• Product Segment: IEI
• Product Type: Cable Ties
• Color: Black
• Environment: Indoor/Outdoor
• Sub Brand: Pan-Ty®
• For Use With: GTS-E, PTS
• Material: Weather Resistant Nylon 6.6
• Resistance Properties: UV Resistant
• Maximum Bundle Diameter (In.): 0.6
• Maximum Bundle Diameter (mm): 15
• Maximum Installation Temperature (°F): 32
• Maximum Operating Temperature (°C): 85
• Maximum Operating Temperature (°F): 185
• Minimum Bundle Diameter (mm): 0.3
• Minimum Bundle Diameter (In.): 0.01
• Minimum Installation Temperature (°C): -20
• Minimum Installation Temperature (°F): -4
• Minimum Loop Tensile Strength (N): 36
• Minimum Loop Tensile Strength (lb): 8
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Overall Length (In.): 2.8
• Overall Length (mm): 71
• Body Width (mm): 1.8
• Body Width (In.): 0.07
• Body Thickness (mm): 0.8
• Body Thickness (In.): 0.03
• Standards Met: UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Complaint

Packaging Details

• UPC: 07498356035
• GTIN Package: 00074983560356
• Standard Package Volume Ft3: 0.0182
• Standard Package Weight Pounds: 0.0600
• Std Package Height In: .85
• Std Package Height MM: 21.59
• Std Package Length In: 4.3
• Std Package Length MM: 109.22
• Std Package Width In: 3.8
• Std Package Width MM: 96.52
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983560351
• Standard Carton Volume Ft3: 0.0182
• Standard Carton Weight Pounds: 0.6000
• Std Carton Height In: 4.45
• Std Carton Height MM: 113.03
• Std Carton Length In: 10.2
• Std Carton Length MM: 109.22
• Std Carton Width In: 6.3
• Std Carton Width MM: 160.02
• Std Ctn Qty: 1000
• Min. Order UOM: Piece
• Country of Origin 2Digit: SG
• RoHS Compliant: Compliant
• EAN: 00074983560356
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1,000
• Pallet Quantity: 240,000
• Pallet Volume: 43.775000
• Pallet Weight: 144.0000
