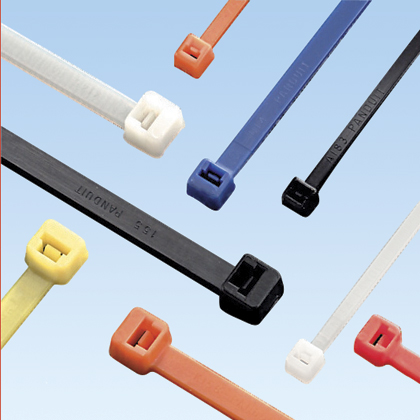

Panduit PLT1.5I-C6 5.6 Inch (142 mm) Intermediate Cross Section Cable Tie

$28.70/c (100 ea)

Usually ships within 6 to 10 Days

Adding...

Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing

Specifications

Product Segment: IEI
UNSPSC: 39121703
Product Type: Cable Tie
Color: Blue
Environment: Plenum
Sub Brand: Pan-Ty®
For Use With: GTS-E, GS2B-E, PTS
Material: Nylon 6.6
Resistance Properties: NA
Maximum Bundle Diameter (In.): 1.38
Maximum Bundle Diameter (mm): 35
Maximum Installation Temperature (°F): 32
Maximum Operating Temperature (°C): 85
Maximum Operating Temperature (°F): 185
Minimum Bundle Diameter (mm): 1.5
Minimum Bundle Diameter (In.): 0.06
Minimum Installation Temperature (°F): -4
Minimum Installation Temperature (°C): -20
Minimum Loop Tensile Strength (N): 178
Minimum Loop Tensile Strength (lb): 40
Minimum Operating Temperature (°C): -60
Minimum Operating Temperature (°F): -76
Overall Length (mm): 142
Overall Length (In.): 5.6
Body Width (In.): 0.142
Body Width (mm): 3.6
Body Thickness (In.): 0.045
Body Thickness (mm): 1.1
Standards Met: UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
Military Cross Reference Number: MS3367-5-6

UPC	07498354738
Item Long Description	Pan-Ty locking tie, intermediate cross section, 5.6 (142mm) length, nylon 6.6, blue, standard package.
GTiN	00074983547388
Width	3.6 mm
Color	Blue
Type	Cable Tie
Thickness	1.1 mm
Material	Nylon
Applications	General
Country of Origin	SG
Pkg Qty	100
Family Brand Name	Panduit
Max Operating Temperature	185 degrees F
Overall Length	5.6 in
Min Operating Temperature	-76 degrees F
Tensile Strength	178 lb
Bundle Diameter	35 mm
Sub Brand	Pan-Ty
CA Prop65 Warning	No
UNSPSC	39121703
