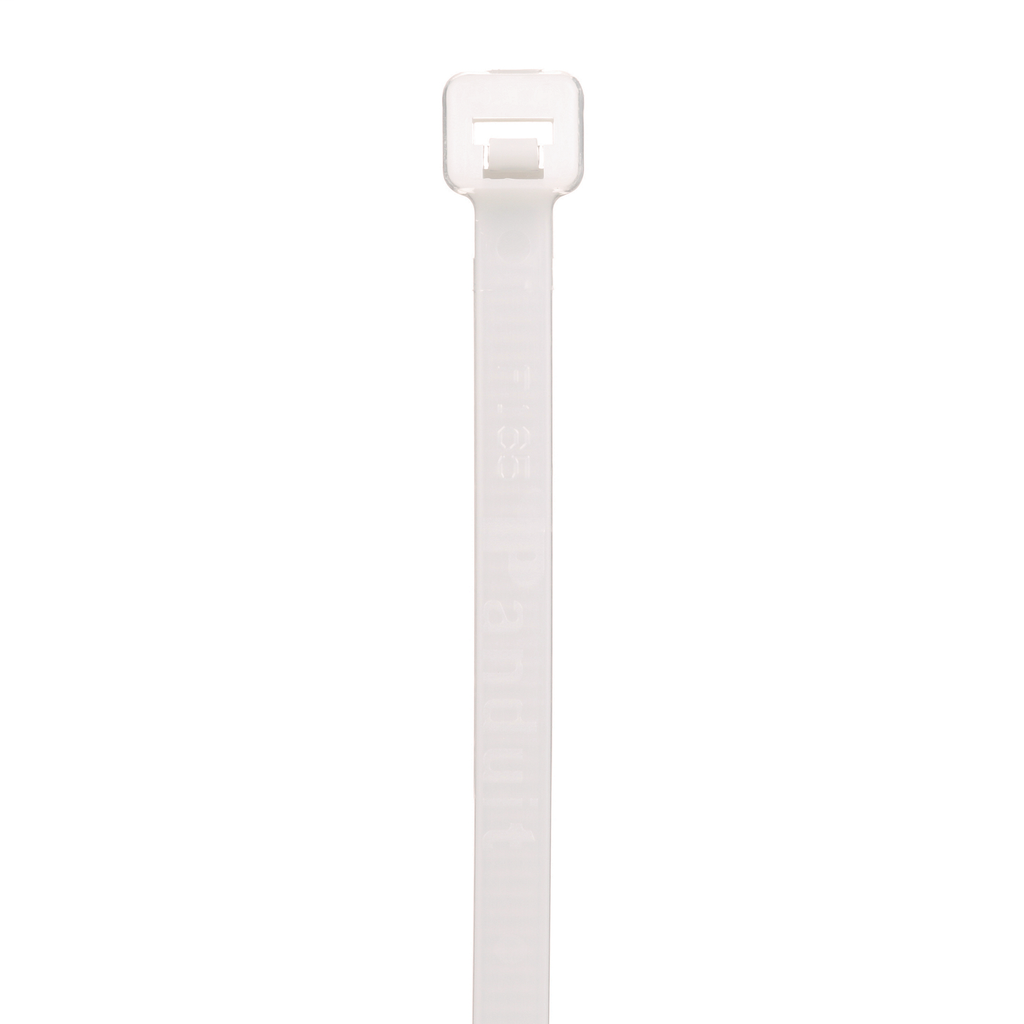

Panduit PLT1.5I-M 1000/Pack 5.6 Inch 142 mm Intermediate Cross Section Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$65.37/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT1.5I-M
North Coast Part # 68641

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Natural
  • Environment: Indoor
  • Sub Brand: Pan-Ty®
  • For use with: GTS-E, GS2B-E, PTS, PPTS, STS2
  • Material: Nylon 6.6
  • Resistance Properties: NA
  • Maximum Bundle Diameter (mm): 35
  • Maximum Bundle Diameter (In.): 1.38
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (lb): 40
  • Minimum Loop Tensile Strength (N): 178
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 5.6
  • Overall Length (mm): 142
  • Body Width (mm): 3.6
  • Body Width (In.): 0.142
  • Body Thickness (mm): 1.1
  • Body Thickness (In.): 0.045
  • Standards Met: UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint

Packaging Details

  • UPC: 07498354048
  • GTIN Package: 00074983540488
  • Standard Package Volume Ft3: 0.1254
  • Standard Package Weight Pounds: 1.5406
  • Std Package Height In: 2.85
  • Std Package Height MM: 72.39
  • Std Package Length In: 14.05
  • Std Package Length MM: 356.87
  • Std Package Width In: 8.1
  • Std Package Width MM: 205.74
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983540483
  • Standard Carton Volume Ft3: 0.1254
  • Standard Carton Weight Pounds: 38.5160
  • Std Carton Height In: 16.8
  • Std Carton Height MM: 426.72
  • Std Carton Length In: 22.05
  • Std Carton Length MM: 356.87
  • Std Carton Width In: 15.1
  • Std Carton Width MM: 383.54
  • Std Ctn Qty: 25000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983540488
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498354048
GTiN 00074983540488
Length 142 mm
Width 3.6 mm
Color Natural
Type Internal Toothing, Locking
Thickness 1.1 mm
Material Nylon 6/6
Applications For General use
Country of Origin Costa Rica
Temperature Rating -60 to 85 C
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 25000
Max Operating Temperature 185 degrees F
Overall Length 5.6 in
Standard Packaging Qty 1000/Pack
Min Operating Temperature -76 degrees F
Tensile Strength 178 N
Bundle Diameter 35 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
