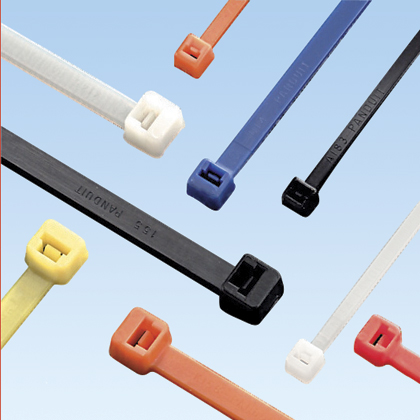

PAN PLT1M-M10 CableTie,Min,3.9in,Ny

Specifications

• UNSPSC: 39121703
• Product Segment: IEI
• Product Type: Cable Tie
• Color: White
• Environment: Plenum
• Sub Brand: Pan-Ty®
• For use with: GTS-E, GS2B-E, PTS
• Material: Nylon 6.6
• Resistance Properties: NA
• Maximum Bundle Diameter (mm): 22.1
• Maximum Bundle Diameter (In.): 0.87
• Maximum Installation Temperature (°F): 32
• Maximum Operating Temperature (°F): 185
• Maximum Operating Temperature (°C): 85
• Minimum Bundle Diameter (mm): 1.5
• Minimum Bundle Diameter (In.): 0.06
• Minimum Installation Temperature (°C): -20
• Minimum Installation Temperature (°F): -4
• Minimum Loop Tensile Strength (N): 80
• Minimum Loop Tensile Strength (lb): 18
• Minimum Operating Temperature (°F): -76
• Minimum Operating Temperature (°C): -60
• Overall Length (mm): 99
• Overall Length (In.): 3.9
• Body Width (mm): 2.5
• Body Width (In.): 0.098
• Body Thickness (In.): 0.043
• Body Thickness (mm): 1.1
• Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint

Packaging Details

• UPC: 07498354967
• GTIN Package: 00074983549672
• Standard Package Volume Ft3: 0.0628
• Standard Package Weight Pounds: 0.8000
• Std Package Height In: 2.55
• Std Package Height MM: 64.77
• Std Package Length In: 10.35
• Std Package Length MM: 262.89
• Std Package Width In: 7.75
• Std Package Width MM: 196.85
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 1000
• GTIN Carton: 50074983549677
• Standard Carton Volume Ft3: 0.0628
• Standard Carton Weight Pounds: 40.0000
• Std Carton Height In: 16.5
• Std Carton Height MM: 419.1
• Std Carton Length In: 22.5
• Std Carton Length MM: 262.89
• Std Carton Width In: 15.1
• Std Carton Width MM: 383.54
• Std Ctn Qty: 50000
• Min. Order UOM: Piece
• Country of Origin 2Digit: SG
• RoHS Compliant: Compliant
• EAN: 00074983549672
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 1000
