PAN PLT1M-XMR Panduit PLT1M-XMR Con
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$55.39/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT1M-XMR
North Coast Part # 1281072

Specifications

  • Product Segment: IEI
  • Product Type: Reel-Fed Cable Tie
  • Application: Reel-fed cable ties for automated tooling
  • Color: Natural
  • Sub Brand: Pan-Ty®
  • Environment: Indoor
  • For Use With: PAT1M4.0 System
  • Material: Nylon 6.6
  • Maximum Bundle Diameter (mm): 20.8
  • Maximum Bundle Diameter (In.): 0.82
  • Maximum Operating Temperature (°F): 185
  • Maximum Operating Temperature (°C): 85
  • Minimum Bundle Diameter (mm): 0.5
  • Minimum Bundle Diameter (In.): 0.02
  • Minimum Loop Tensile Strength (N): 80
  • Minimum Loop Tensile Strength (lb): 18
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 4
  • Overall Length (mm): 102
  • Body Width (mm): 2.5
  • Body Width (In.): 0.1
  • Body Thickness (mm): 0.9
  • Body Thickness (In.): 0.036
  • Resistance Properties: NA
  • Military Cross Reference Number: MS3367-4-9
  • Standards Met: UL Listed; UL Recognized; CSA Certified; CE Compliant; RoHS Compliant
  • Number of Ties per Reel: 5000

Packaging Details

  • UPC: 07498354716
  • GTIN Package: 00074983547166
  • Standard Package Volume Ft3: 1.2524
  • Standard Package Weight Pounds: 7.9225
  • Std Package Height In: 6.2
  • Std Package Height MM: 157.48
  • Std Package Length In: 18.5
  • Std Package Length MM: 469.9
  • Std Package Width In: 18.5
  • Std Package Width MM: 469.9
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 5000
  • GTIN Carton: 50074983547161
  • Standard Carton Volume Ft3: 1.2524
  • Standard Carton Weight Pounds: 15.8450
  • Std Carton Height In: 12.75
  • Std Carton Height MM: 323.85
  • Std Carton Length In: 18.7
  • Std Carton Length MM: 469.9
  • Std Carton Width In: 18.6
  • Std Carton Width MM: 472.44
  • Std Ctn Qty: 10000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983547166
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 10,000
  • Pallet Quantity: 160,000
  • Pallet Volume: 40.078184
  • Pallet Weight: 253.5200

Overview

UPC 07498354716

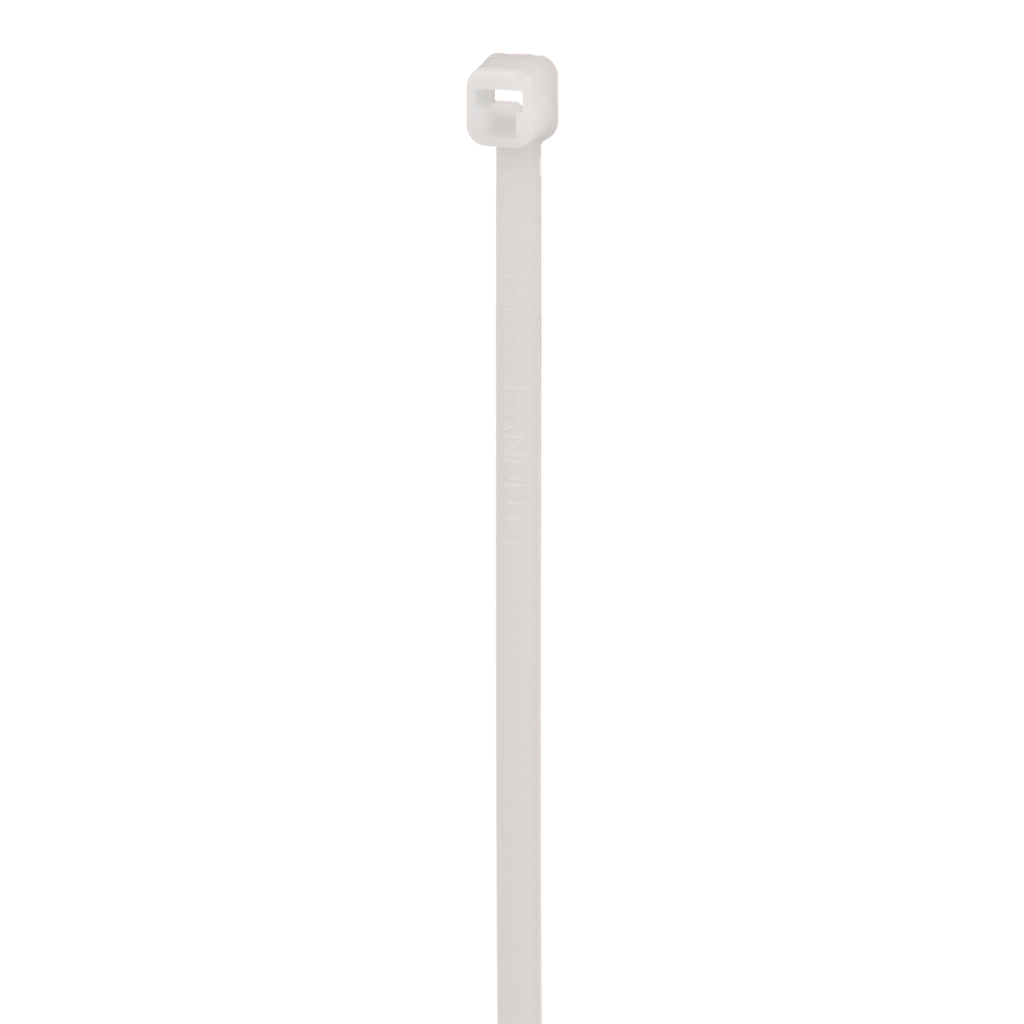

Item Long Description Panduit PLT1M-XMR continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 4.0 (102mm) cable ties for use with PAT1M4.0 and PDM4.0 system. Made of Nylon 6.6, are natural in color and come 5,000 ties per reel.
GTiN 00074983547166
Length 102 mm
Width 2.5 mm
Color Natural
Type Reel-Fed Cable Tie
Thickness 0.9 mm
Material Nylon
Applications Used For PAT1M System
Country of Origin Costa Rica
Pkg Qty 5000
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 4 in
Min Operating Temperature -76 degrees F
Tensile Strength 80 lb
Bundle Diameter 20.8 mm
Sub Brand Pan-Ty
