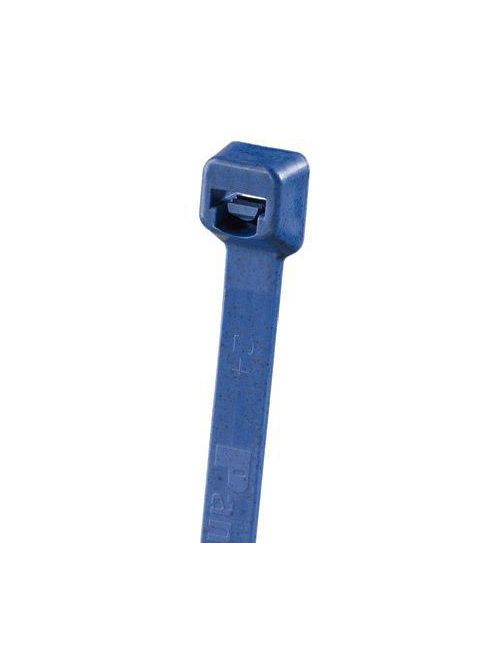

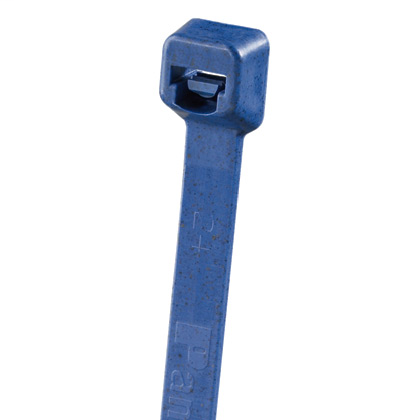

Panduit PLT2S-C186 7.3 L 186 mm Standard Metal Detectable Polypropylene Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$41.11/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT2S-C186
North Coast Part # 543524

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Dark Blue
  • Environment: Indoor
  • Sub Brand: Pan-Ty®
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, STS2, STH2
  • Material: Metal Impregnated Polypropylene
  • Resistance Properties: Chemical Resistant
  • Maximum Bundle Diameter (mm): 47
  • Maximum Bundle Diameter (In.): 1.85
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°F): 239
  • Maximum Operating Temperature (°C): 115
  • Minimum Bundle Diameter (In.): 0.13
  • Minimum Bundle Diameter (mm): 3.3
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (N): 133
  • Minimum Loop Tensile Strength (lb): 30
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Overall Length (mm): 186
  • Overall Length (In.): 7.3
  • Body Width (In.): 0.19
  • Body Width (mm): 4.8
  • Body Thickness (In.): 0.057
  • Body Thickness (mm): 1.4
  • Standards Met: RoHS Compliant

Packaging Details

  • UPC: 07498311455
  • GTIN Package: 00074983114559
  • Standard Package Volume Ft3: 0.0321
  • Standard Package Weight Pounds: 0.3400
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 8.95
  • Std Package Length MM: 227.33
  • Std Package Width In: 5.8
  • Std Package Width MM: 147.32
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983114554
  • Standard Carton Volume Ft3: 0.0321
  • Standard Carton Weight Pounds: 3.4000
  • Std Carton Height In: 6.35
  • Std Carton Height MM: 161.29
  • Std Carton Length In: 10.5
  • Std Carton Length MM: 227.33
  • Std Carton Width In: 8.25
  • Std Carton Width MM: 209.55
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983114559
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 168,000
  • Pallet Volume: 53.880653
  • Pallet Weight: 571.2000

Categories

Overview

UPC 07498311455
Item Long Description Panduit PLT2S-C186 Metal Detectable Cable Ties are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. Featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Additionally, the distinct blue color facilitates quick visual detection. Standard cross section, 7.3 (186mm) length. Made of metal detectable polypropylene, are dark blue in color, and come in packages of 100.
GTiN 00074983114559
Length 7.3 in
Width 8.1 mm
Color Dark Blue
Type Cable Ties
Thickness 1.5 mm
Material Metal Impregnated Polypropylene
Country of Origin Costa Rica
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 239 degrees F
Overall Length 7.4 in
Min Operating Temperature -40 degrees F
Tensile Strength 133 lb
Bundle Diameter 47.8 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
Applications Metal Detectable
