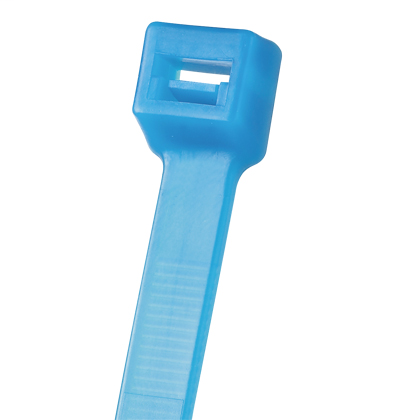

Panduit PLT2S-C76 7.4 Inch (188 mm) Standard Cross Section Tefzel Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$277.12/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT2S-C76
North Coast Part # 604742

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Environment: Indoor/Outdoor
  • Sub Brand: Pan-Ty®
  • For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
  • Material: Tefzel
  • Resistance Properties: Chemical, Radiation, UV and High Heat Resistant
  • Maximum Bundle Diameter (mm): 48
  • Maximum Bundle Diameter (In.): 1.88
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°F): 338
  • Maximum Operating Temperature (°C): 170
  • Minimum Bundle Diameter (In.): 0.13
  • Minimum Bundle Diameter (mm): 3.3
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Overall Length (In.): 7.4
  • Overall Length (mm): 188
  • Body Width (In.): 0.19
  • Body Width (mm): 4.8
  • Body Thickness (In.): 0.055
  • Body Thickness (mm): 1.4
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
  • Military Cross Reference Number: MS3367-1-15

Packaging Details

  • UPC: 07498354824
  • GTIN Package: 00074983548248
  • Standard Package Volume Ft3: 0.0321
  • Standard Package Weight Pounds: 0.6200
  • Std Package Height In: 1.55
  • Std Package Height MM: 39.37
  • Std Package Length In: 9
  • Std Package Length MM: 228.6
  • Std Package Width In: 5.7
  • Std Package Width MM: 144.78
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983548243
  • Standard Carton Volume Ft3: 0.0321
  • Standard Carton Weight Pounds: 6.2000
  • Std Carton Height In: 6.3
  • Std Carton Height MM: 160.02
  • Std Carton Length In: 10.5
  • Std Carton Length MM: 228.6
  • Std Carton Width In: 8.3
  • Std Carton Width MM: 210.82
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983548248
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498354824
Item Long Description Panduit PLT2S-C76 Tefzel locking cable ties are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Standard cross section, 7.4 (188mm) length. For indoor or outdoor use, made of Tefzel, are a distinctive aqua blue in color and come in packages of 100.
GTiN 00074983548248
Length 7.4 in
Width 8.1 mm
Color Aqua Blue
Type Cable Ties
Thickness 1.5 mm
Material Tefzel
Country of Origin Costa Rica
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 338 degrees F
Overall Length 7.4 in
Min Operating Temperature -76 degrees F
Tensile Strength 222 lb
Bundle Diameter 47.8 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
Applications Radiation Resistant
