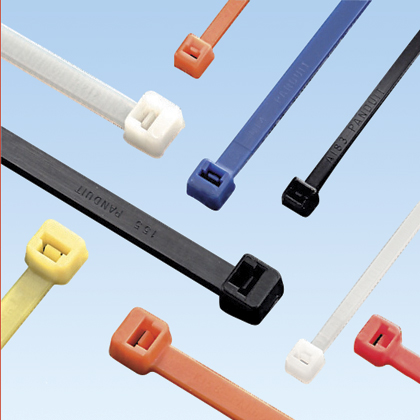

PAN PLT3I-M8 CableTie,Int,11.4in,Gr
Product image thumbnail 0
Product image thumbnail 1
$217.64/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT3I-M8
North Coast Part # 675727

Specifications

  • UNSPSC: 39121703
  • Product Segment: IEI
  • Product Type: Cable Tie
  • Color: Gray
  • Sub Brand: Pan-Ty®
  • Environment: Plenum
  • For Use With: GTS-E, GS2B-E, PTS
  • Material: Nylon 6.6
  • Resistance Properties: NA
  • Maximum Bundle Diameter (In.): 3
  • Maximum Bundle Diameter (mm): 76.2
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (lb): 40
  • Minimum Loop Tensile Strength (N): 178
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (mm): 290
  • Overall Length (In.): 11.4
  • Body Width (mm): 3.7
  • Body Width (In.): 0.145
  • Body Thickness (In.): 0.052
  • Body Thickness (mm): 1.3
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint

Packaging Details

  • UPC: 07498356457
  • GTIN Package: 00074983564576
  • Standard Package Volume Ft3: 0.2572
  • Standard Package Weight Pounds: 3.6000
  • Std Package Height In: 3.05
  • Std Package Height MM: 77.47
  • Std Package Length In: 13.75
  • Std Package Length MM: 349.25
  • Std Package Width In: 13.6
  • Std Package Width MM: 345.44
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • GTIN Carton: 50074983564571
  • Standard Carton Volume Ft3: 0.2572
  • Standard Carton Weight Pounds: 36.0000
  • Std Carton Height In: 18.3
  • Std Carton Height MM: 464.82
  • Std Carton Length In: 23.05
  • Std Carton Length MM: 349.25
  • Std Carton Width In: 11.05
  • Std Carton Width MM: 280.67
  • Std Ctn Qty: 10000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG
  • RoHS Compliant: Compliant
  • EAN: 00074983564576
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 5,000

Overview

UPC 07498356457
GTiN 00074983564576
Width 0.15 in
Color Gray
Type Cable Tie
Thickness 0.05 IN
Material Nylon
Applications General
Country of Origin SG
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 10000
Max Operating Temperature 185 degrees F
Overall Length 11.4 in
Min Operating Temperature -76 degrees F
Tensile Strength 178 lb
Bundle Diameter 3.00 IN
Sub Brand Pan-Ty
CA Prop65 Warning No
UNSPSC 39121703
