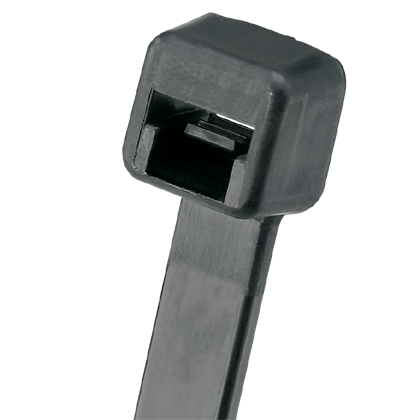

Panduit PLT4H-TL0 14.5 250/Pack Inch 368 mm Light-Heavy Cross Section Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$628.78/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 250 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT4H-TL0
North Coast Part # 604750

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Black
  • Sub Brand: Pan-Ty®
  • Environment: Indoor/Outdoor
  • For Use With: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
  • Material: Weather Resistant Nylon 6.6
  • Resistance Properties: UV Resistant
  • Maximum Bundle Diameter (In.): 4
  • Maximum Bundle Diameter (mm): 102
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (mm): 4.8
  • Minimum Bundle Diameter (In.): 0.188
  • Minimum Installation Temperature (°F): -4
  • Minimum Installation Temperature (°C): -20
  • Minimum Loop Tensile Strength (N): 534
  • Minimum Loop Tensile Strength (lb): 120
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 14.5
  • Overall Length (mm): 368
  • Body Width (In.): 0.3
  • Body Width (mm): 7.6
  • Body Thickness (mm): 1.9
  • Body Thickness (In.): 0.075
  • Standards Met: CSA Certified, RoHS Complaint

Packaging Details

  • UPC: 07498353942
  • GTIN Package: 00074983539420
  • Standard Package Volume Ft3: 0.2210
  • Standard Package Weight Pounds: 3.6744
  • Std Package Height In: 3.25
  • Std Package Height MM: 82.55
  • Std Package Length In: 17.5
  • Std Package Length MM: 444.5
  • Std Package Width In: 11.2
  • Std Package Width MM: 284.48
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 250
  • GTIN Carton: 50074983539425
  • Standard Carton Volume Ft3: 0.2210
  • Standard Carton Weight Pounds: 36.7437
  • Std Carton Height In: 15.4
  • Std Carton Height MM: 391.16
  • Std Carton Length In: 23.1
  • Std Carton Length MM: 444.5
  • Std Carton Width In: 10.9
  • Std Carton Width MM: 276.86
  • Std Ctn Qty: 2500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR,SG
  • RoHS Compliant: Compliant
  • EAN: 00074983539420
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498353942
Item Long Description Cable Tie, 14.5L (368mm), Light-Heavy, Weather Resistant, Black
GTiN 00074983539420
Length 14.5 in
Width 7.6 mm
Color Black
Type Weather-Resistant, Light-Heavy, Plenum, Locking
Thickness 1.9 mm
Material Nylon 6.6/Polyamide
Applications General Use
Country of Origin CR,SG
Temperature Rating -60 to 85 C, -4 to 32 C
Pkg Qty 250
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 14.5 in
Standard Packaging Qty 250/Pack
Min Operating Temperature -76 degrees F
Tensile Strength 534 N
Bundle Diameter 102 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
