Panduit PLT4H-TL69 250-Pack Light-Heavy Cross Section 14.6 Inch Ivory Flame Retardant Nylon Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1,253.15/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 250 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT4H-TL69
North Coast Part # 154612

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Ivory
  • Sub Brand: Pan-Ty®
  • Environment: Indoor
  • For Use With: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
  • Material: Flame Retardant Nylon 6.6
  • Resistance Properties: Flame Retardant
  • Maximum Bundle Diameter (mm): 102
  • Maximum Bundle Diameter (In.): 4
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°F): 212
  • Maximum Operating Temperature (°C): 100
  • Minimum Bundle Diameter (mm): 4.8
  • Minimum Bundle Diameter (In.): 0.188
  • Minimum Installation Temperature (°F): -4
  • Minimum Installation Temperature (°C): -20
  • Minimum Loop Tensile Strength (N): 534
  • Minimum Loop Tensile Strength (lb): 120
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Overall Length (In.): 14.6
  • Overall Length (mm): 371
  • Body Width (In.): 0.3
  • Body Width (mm): 7.6
  • Body Thickness (mm): 1.9
  • Body Thickness (In.): 0.075
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint

Packaging Details

  • UPC: 07498353944
  • GTIN Package: 00074983539444
  • Standard Package Volume Ft3: 0.2211
  • Standard Package Weight Pounds: 3.5750
  • Std Package Height In: 3.85
  • Std Package Height MM: 97.79
  • Std Package Length In: 16.95
  • Std Package Length MM: 430.53
  • Std Package Width In: 9.3
  • Std Package Width MM: 236.22
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 250
  • GTIN Carton: 50074983539449
  • Standard Carton Volume Ft3: 0.2211
  • Standard Carton Weight Pounds: 35.7500
  • Std Carton Height In: 15.91
  • Std Carton Height MM: 404.114
  • Std Carton Length In: 22.96
  • Std Carton Length MM: 430.53
  • Std Carton Width In: 10.46
  • Std Carton Width MM: 265.684
  • Std Ctn Qty: 2500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG,CR
  • RoHS Compliant: Compliant
  • EAN: 00074983539444
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500
  • Pallet Quantity: 60,000
  • Pallet Volume: 53.069042
  • Pallet Weight: 858.0000

Overview

UPC 07498353944

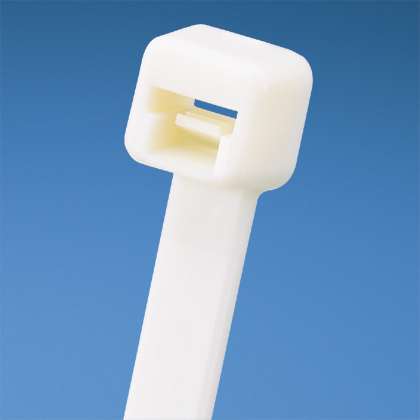

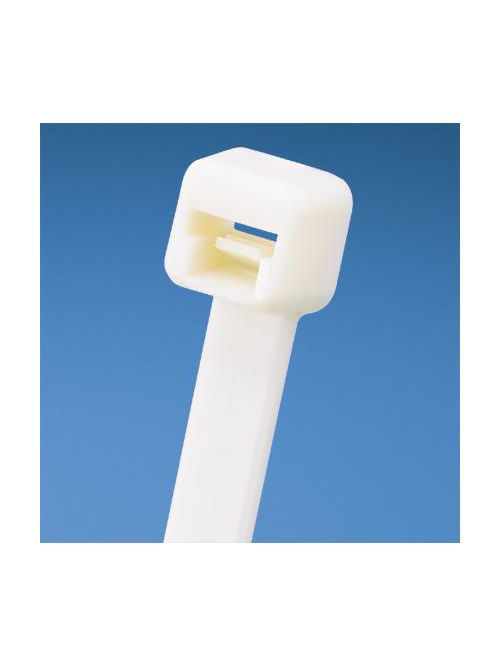

Item Long Description Panduit PLT4H-TL69 Locking Cable Ties are designed to satisfy the needs of flame retardant (UL 94V-0) applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 14.6" (371mm) length. Made of Flame Retardant Nylon 6.6, are Ivory in color and come in packages of 250.
GTiN 00074983539444
Width 12.2 mm
Color Natural Ivory
Type Cable Ties
Thickness 2 mm
Material Nylon
Applications General
Country of Origin Costa Rica
Pkg Qty 250
Family Brand Name Panduit
Max Operating Temperature 212 degrees F
Overall Length 14.6 in
Min Operating Temperature -76 degrees F
Tensile Strength 534 lb
Bundle Diameter 101.6 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
