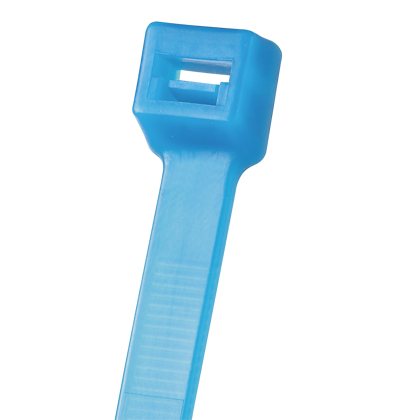

PAN PLT4S-C76 CableTie,Std,14.6in,T
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$438.97/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT4S-C76
North Coast Part # 683439

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Sub Brand: Pan-Ty®
  • Environment: Indoor/Outdoor
  • For use with: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
  • Material: Tefzel
  • Resistance Properties: Chemical, Radiation, UV and High Heat Resistant
  • Maximum Bundle Diameter (mm): 102
  • Maximum Bundle Diameter (In.): 4
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 170
  • Maximum Operating Temperature (°F): 338
  • Minimum Bundle Diameter (mm): 3.3
  • Minimum Bundle Diameter (In.): 0.13
  • Minimum Installation Temperature (°F): -4
  • Minimum Installation Temperature (°C): -20
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Overall Length (In.): 14.6
  • Overall Length (mm): 371
  • Body Width (mm): 4.8
  • Body Width (In.): 0.19
  • Body Thickness (mm): 1.5
  • Body Thickness (In.): 0.059
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant

Packaging Details

  • UPC: 07498354093
  • GTIN Package: 00074983540938
  • Standard Package Volume Ft3: 0.0534
  • Standard Package Weight Pounds: 1.0564
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 15.5
  • Std Package Length MM: 393.7
  • Std Package Width In: 5.65
  • Std Package Width MM: 143.51
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983540933
  • Standard Carton Volume Ft3: 0.0534
  • Standard Carton Weight Pounds: 10.5638
  • Std Carton Height In: 6.05
  • Std Carton Height MM: 153.67
  • Std Carton Length In: 16.9
  • Std Carton Length MM: 393.7
  • Std Carton Width In: 9.2
  • Std Carton Width MM: 233.68
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983540938
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Categories

Overview

UPC 07498354093
GTiN 00074983540938
Length 14.6 in
Width 0.19 in
Color Aqua
Type Locking, Internal Toothing, Standard
Thickness 0.059 in
Material Tefzel
Country of Origin Costa Rica
Temperature Rating -60 to 170 C
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 1000
Max Operating Temperature 338 degrees F
Overall Length 14.6 in
Standard Packaging Qty 100/Pack
Min Operating Temperature -76 degrees F
Tensile Strength 50 lb
Bundle Diameter 4 in
Sub Brand Pan-Ty
CA Prop65 Warning No
Applications Radiation Resistant
