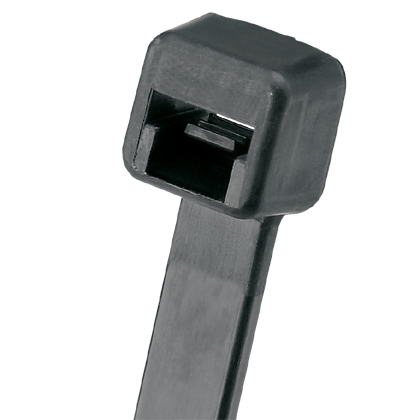

PAN PLT5H-L0 Panduit PLT5H-L0 Locki

Specifications

• Product Segment: IEI
• Product Type: Cable Ties
• Color: Black
• Environment: Indoor/Outdoor
• Sub Brand: Pan-Ty®
• For use with: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
• Material: Weather Resistant Nylon 6.6
• Resistance Properties: UV Resistant
• Maximum Bundle Diameter (In.): 5
• Maximum Bundle Diameter (mm): 127
• Maximum Installation Temperature (°F): 32
• Maximum Operating Temperature (°F): 185
• Maximum Operating Temperature (°C): 85
• Minimum Bundle Diameter (In.): 0.188
• Minimum Bundle Diameter (mm): 4.8
• Minimum Installation Temperature (°F): -4
• Minimum Installation Temperature (°C): -20
• Minimum Loop Tensile Strength (N): 778
• Minimum Loop Tensile Strength (lb): 175
• Minimum Operating Temperature (°F): -76
• Minimum Operating Temperature (°C): -60
• Overall Length (In.): 17.7
• Overall Length (mm): 450
• Body Width (In.): 0.35
• Body Width (mm): 8.9
• Body Thickness (In.): 0.078
• Body Thickness (mm): 2
• Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Complaint

Packaging Details

• UPC: 07498354103
• GTIN Package: 00074983541034
• Standard Package Volume Ft3: 0.1006
• Standard Package Weight Pounds: 1.2000
• Std Package Height In: 2.25
• Std Package Height MM: 57.15
• Std Package Length In: 19.8
• Std Package Length MM: 502.92
• Std Package Width In: 5.2
• Std Package Width MM: 132.08
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983541039
• Standard Carton Volume Ft3: 0.1006
• Standard Carton Weight Pounds: 12.0000
• Std Carton Height In: 7.45
• Std Carton Height MM: 189.23
• Std Carton Length In: 22.9
• Std Carton Length MM: 502.92
• Std Carton Width In: 10.45
• Std Carton Width MM: 265.43
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: Compliant
• EAN: 00074983541034
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 50
