PAN PLT6LH-L0 Panduit PLT6LH-L0 Loc
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$162.26/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT6LH-L0
North Coast Part # 755205

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Black
  • Sub Brand: Pan-Ty®
  • Environment: Indoor/Outdoor
  • For Use With: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
  • Material: Weather Resistant Nylon 6.6
  • Resistance Properties: UV Resistant
  • Maximum Bundle Diameter (mm): 152
  • Maximum Bundle Diameter (In.): 6
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (mm): 4.8
  • Minimum Bundle Diameter (In.): 0.188
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (lb): 120
  • Minimum Loop Tensile Strength (N): 534
  • Minimum Operating Temperature (°F): -76
  • Minimum Operating Temperature (°C): -60
  • Overall Length (mm): 556
  • Overall Length (In.): 21.9
  • Body Width (In.): 0.3
  • Body Width (mm): 7.6
  • Body Thickness (In.): 0.075
  • Body Thickness (mm): 1.9
  • Standards Met: RoHS Compliant

Packaging Details

  • UPC: 07498336892
  • GTIN Package: 00074983368921
  • Standard Package Volume Ft3: 0.1174
  • Standard Package Weight Pounds: 1.5432
  • Std Package Height In: 2.1
  • Std Package Height MM: 53.34
  • Std Package Length In: 23.9
  • Std Package Length MM: 607.06
  • Std Package Width In: 4.95
  • Std Package Width MM: 125.73
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983368926
  • Standard Carton Volume Ft3: 0.1174
  • Standard Carton Weight Pounds: 15.4323
  • Std Carton Height In: 8.3
  • Std Carton Height MM: 210.82
  • Std Carton Length In: 23.6
  • Std Carton Length MM: 607.06
  • Std Carton Width In: 10.55
  • Std Carton Width MM: 267.97
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: CR
  • RoHS Compliant: Compliant
  • EAN: 00074983368921
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500
  • Pallet Quantity: 20,000
  • Pallet Volume: 46.958333
  • Pallet Weight: 617.2936

Categories

Overview

UPC 07498336892

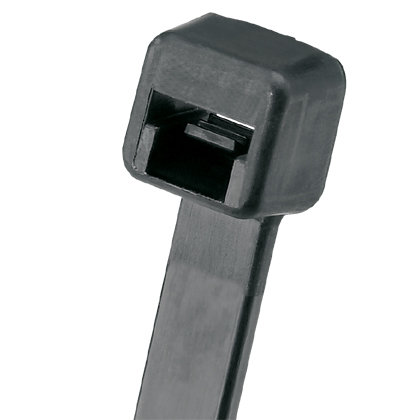

Item Long Description Panduit PLT6LH-L0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 21.9" (556mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
GTiN 00074983368921
Width 14.2 mm
Color Natural
Type Cable Ties
Thickness 2 mm
Material Nylon
Applications General
Country of Origin Costa Rica
Pkg Qty 50
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 21.9 in
Min Operating Temperature -76 degrees F
Tensile Strength 534 lb
Bundle Diameter 152.4 mm
Sub Brand Pan-Ty
CA Prop65 Warning No
