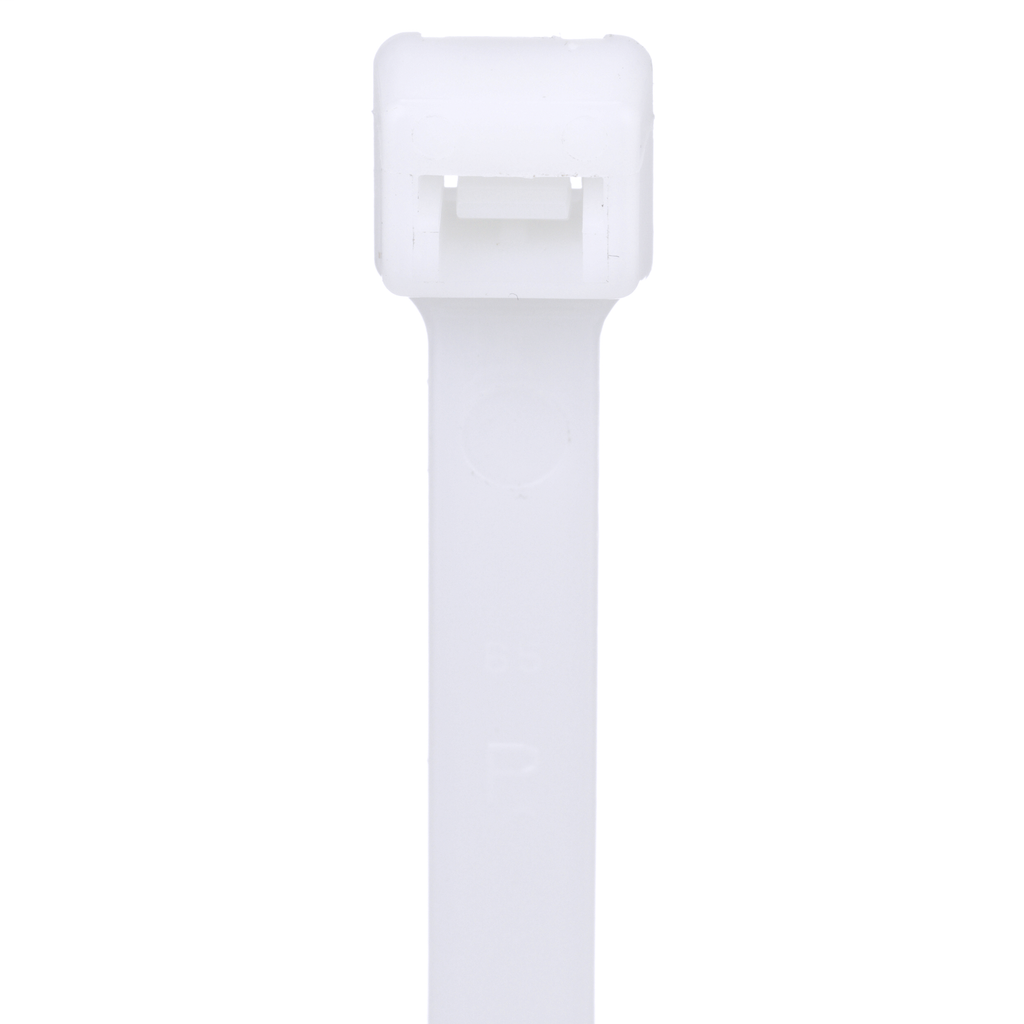

Panduit PLT9LH-L 30.5 Inch (775 mm) Light-Heavy Cross Section Cable Tie

Specifications

• Product Segment: IEI
• Product Type: Cable Ties
• Color: Natural
• Sub Brand: Pan-Ty®
• Environment: Indoor
• For use with: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
• Material: Nylon 6.6
• Resistance Properties: NA
• Maximum Bundle Diameter (In.): 9
• Maximum Bundle Diameter (mm): 229
• Maximum Installation Temperature (°F): 32
• Maximum Operating Temperature (°C): 85
• Maximum Operating Temperature (°F): 185
• Minimum Bundle Diameter (mm): 4.8
• Minimum Bundle Diameter (In.): 0.188
• Minimum Installation Temperature (°F): -4
• Minimum Installation Temperature (°C): -20
• Minimum Loop Tensile Strength (N): 534
• Minimum Loop Tensile Strength (lb): 120
• Minimum Operating Temperature (°C): -60
• Minimum Operating Temperature (°F): -76
• Overall Length (In.): 30.5
• Overall Length (mm): 775
• Body Width (In.): 0.3
• Body Width (mm): 7.6
• Body Thickness (mm): 1.9
• Body Thickness (In.): 0.075
• Standards Met: UL 62275 Compliant (Type 2, 21), UL Recognized (File #E56854), CSA Certified, RoHS Complaint

Packaging Details

• UPC: 07498354174
• GTIN Package: 00074983541744
• Standard Package Volume Ft3: 0.1498
• Standard Package Weight Pounds: 1.3950
• Std Package Height In: 1.45
• Std Package Height MM: 36.83
• Std Package Length In: 32.1
• Std Package Length MM: 815.34
• Std Package Width In: 6.75
• Std Package Width MM: 171.45
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983541749
• Standard Carton Volume Ft3: 0.1498
• Standard Carton Weight Pounds: 13.9500
• Std Carton Height In: 7
• Std Carton Height MM: 177.8
• Std Carton Length In: 32.75
• Std Carton Length MM: 815.34
• Std Carton Width In: 11.25
• Std Carton Width MM: 285.75
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: CR
• RoHS Compliant: Compliant
• EAN: 00074983541744
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 50
