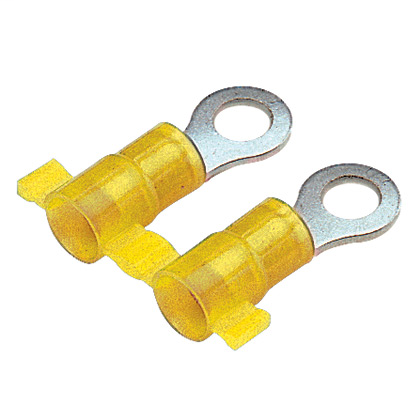

Panduit PN10-10R-2K 12-10 AWG Nylon Insulated Ring Terminal

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Stud Size: #10
• Stud Hole Size (In.): 1/5
• Stud Hole Size (mm): 5.1
• Insulation Material: Nylon
• Minimum Wire Size (AWG): #14
• Maximum Copper Conductor Size (AWG SOL): 10
• Maximum Copper Conductor Size (AWG): 10
• Maximum Wire Size (AWG): 10
• Maximum Copper Conductor Size (AWG STR): 10
• Minimum Copper Conductor Size (AWG STR): #14
• Minimum Copper Conductor Size (AWG): #14
• Minimum Copper Conductor Size (AWG SOL): #14
• Maximum Metric Conductor Size (mm²): 6
• Minimum Metric Conductor Size (mm²): 4
• Wire Strip Length (In.): 0.28
• Wire Strip Length (mm): 7.1
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 0.6
• Maximum Voltage (V): 600
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Yellow
• Barrel Length (In.): 0.53
• Barrel Length (mm): 13.5
• Flammability Rating: UL 94 V-2/UL 94 HB, UL 486A/B
• Insulation Diameter (In.): 0.23
• Insulation Diameter (mm): 5.8
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Maximum Wire Insulation Diameter (mm): 5.8
• Maximum Wire Insulation Diameter (In.): 0.23
• Minimum Wire Insulation Diameter (In.): 0.23
• Minimum Wire Insulation Diameter (mm): 5.8
• Sub Brand: Reel Smart
• Overall Length (In.): 1.06
• Overall Length (mm): 26.9
• Overall Width (In.): 0.38
• Overall Width (mm): 9.7
• Tongue Length (In.): 0.53
• Tongue Length (mm): 13.5
• Tongue Thickness (In.): 0.04
• Tongue Thickness (mm): 1
• Tongue Width (In.): 0.38
• Tongue Width (mm): 9.7
• Packaging Type: Reel
• Product Type: Ring Terminal
• For use with: CP-861, CP-871

Packaging Details

• UPC: 07498380631
• GTIN Package: 00074983806317
• Standard Package Volume Ft3: 0.9208
• Standard Package Weight Pounds: 12.8000
• Std Package Height In: 2.374
• Std Package Height MM: 60.2996
• Std Package Length In: 26.122
• Std Package Length MM: 663.4988
• Std Package Width In: 25.374
• Std Package Width MM: 644.4996
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 2000
• Standard Carton Volume Ft3: 0.9208
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 663.4988
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983806317
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 2000
