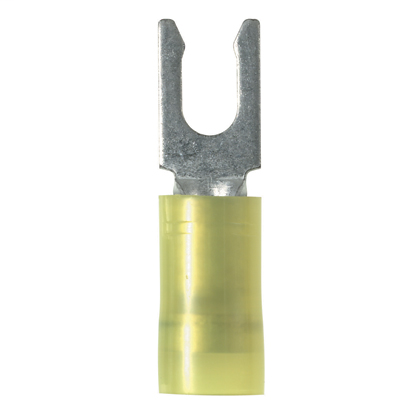

PAN PN10-14LF-L Fork,Locking,Nylon,

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Fork Type: Locking Fork
• Insulation Type: Nylon
• Insulation Material: Nylon
• Maximum Copper Conductor Size (AWG STR): #10
• Minimum Wire Size (AWG): #12
• Maximum Copper Conductor Size (AWG SOL): #10
• Maximum Wire Size (AWG): #10
• Maximum Copper Conductor Size (AWG): #10
• Minimum Copper Conductor Size (AWG STR): #12
• Minimum Copper Conductor Size (AWG): #12
• Minimum Copper Conductor Size (AWG SOL): #12
• Minimum Metric Conductor Size (mm²): 4
• Maximum Metric Conductor Size (mm²): 6
• Stud Size: M6
• Wire Strip Length (In.): 0.28
• Wire Strip Length (mm): 7.1
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Yellow
• Barrel Type: Beveled
• Barrel Length (mm): 14.9
• Barrel Length (In.): 0.59
• Flammability Rating: UL 587-H
• Insulation Diameter (mm): 5.7
• Insulation Diameter (In.): 0.23
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Seam Type: Butted
• Maximum Wire Insulation Diameter (In.): 0.23
• Maximum Wire Insulation Diameter (mm): 5.7
• Minimum Wire Insulation Diameter (mm): 3
• Minimum Wire Insulation Diameter (In.): 0.12
• Stud Hole Size (mm): 6.4
• Stud Hole Size (In.): 1/4
• Overall Length (In.): 1.17
• Overall Length (mm): 29.7
• Overall Width (In.): 0.46
• Overall Width (mm): 11.7
• Tongue Length (In.): 0.59
• Tongue Length (mm): 14.9
• Tongue Thickness (In.): 0.04
• Tongue Thickness (mm): 1
• Tongue Width (In.): 0.46
• Tongue Width (mm): 11.7
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Loose Piece Forks
• For Use With: CT-1550, CT-1551

Packaging Details

• UPC: 07498380086
• GTIN Package: 00074983800865
• Standard Package Volume Ft3: 0.0102
• Standard Package Weight Pounds: 0.3300
• Std Package Height In: 1.9
• Std Package Height MM: 48.26
• Std Package Length In: 4.3
• Std Package Length MM: 109.22
• Std Package Width In: 1.95
• Std Package Width MM: 49.53
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983800860
• Standard Carton Volume Ft3: 0.0102
• Standard Carton Weight Pounds: 3.3000
• Std Carton Height In: 4.4
• Std Carton Height MM: 111.76
• Std Carton Length In: 10.2
• Std Carton Length MM: 109.22
• Std Carton Width In: 4.7
• Std Carton Width MM: 119.38
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983800865
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 50
